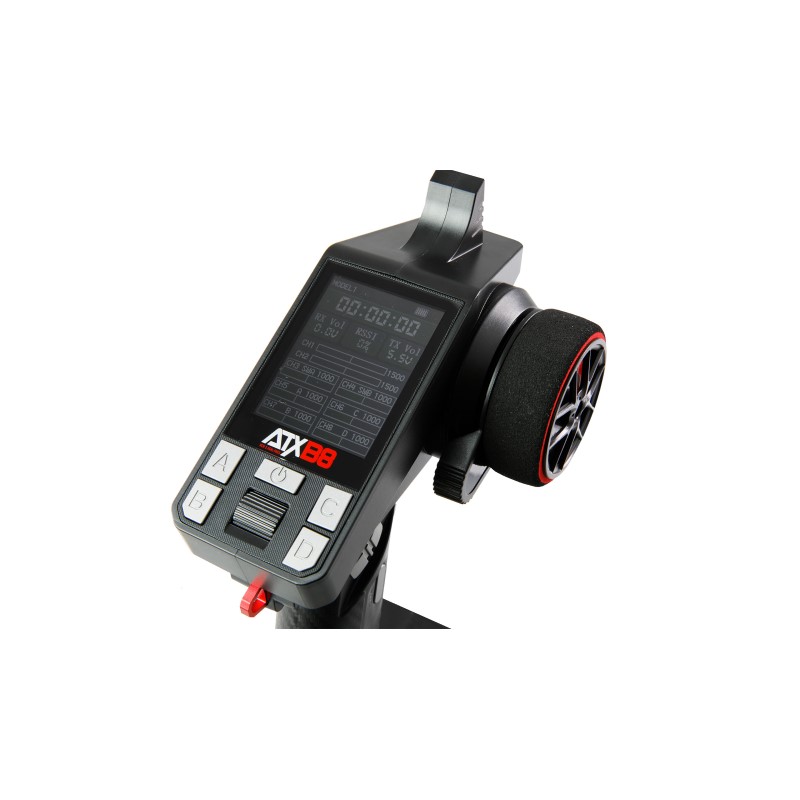

The ATXB8 8-channel gun remote control offers numerous functions and is easy to use. All channels are programmable, there is a storage for up to 8 models as well as a large color display that offers a clear overview. In addition, the remote control has mixing functions for various channels to enable flexible control. An integrated telemetry function shows the battery voltage of the model or the receiver power supply directly on the display in real time. Other practical features include a dual-rate setting for gas and steering, as well as the possibility of customizing the servo direction for all channels. An additional lever was integrated on the steering wheel for convenient one-hand operation. The system can be easily updated or used for simulators, for example, via the USB-C port. The remote control is operated via gas, steering, a push-button on the handle (SWB), a three-way switch above the handle (SWA) and four buttons on the top. The digital trim permanently stores all settings, even if the remote control is turned off and on again. Another security feature is the automatic shutdown function, which becomes active after 15 minutes without input. The transmitter prints a beep one minute before it turns off to spare the battery. An integrated author’s game is available as an additional feature, which is controlled by steering and gas of remote control, while the display serves as a screen for the game.
Highlights:
Fully programmable with 8 controllable channels and 8 model storage systems: ideal for function models, boats, onroad/off-road models or crawlers (not suitable for aircraft models)
Telemetry-capable receiver incl. Cording cable: For data transfer of the drive battery to the display of the remote control
4V-9V Operating voltage: Therefore also lipocapable (max. 2S LiPo) thanks to XH connector. Also in the battery compartment can be installed by a separate flap 18650 Li-ion cells (2x)
More features:
High-quality pots installed for longevity and sensitive control
Failsafe programmable
Protection function in the transmitter for batteries and accumulators, should not be made input for 15 minutes, the remote control switches off automatically
Steering wheel equipped with additional steering lever for convenient one-hand operation
Dual rate for steering and gas via the menu of remote control (checking and speed adjustable to the needs)
Full range (min. 200 meters) thanks to trouble-proof 2.4GHz tape
Remote control lies very well in the hand and weighs only 230g, therefore also suitable for children and smaller hands
Mixing functions for all programmable channels
Servo paths can be set separately for all channels
Servo reversal for channel 1+2 (usually steering and gas)
Technical data:
Channels: 8
Frequency: 2.4GHz FHSS
Operating frequency: 2400-2438,5MHz
Maximum peak performance: 14dBm
Maximum range: 300 meters
Reaction speed: PWM-20ms
Length: 135mm
Width: 75mm
Height: 205mm
Empty weight: 230g
Operating voltage: 4-9V (4xAA 1.5V Mignon batteries, 2xLiIon 18650 or 2S LiPo battery)
Display dimensions: 50x35mm
Battery compartment dimensions: 60x55x15mm

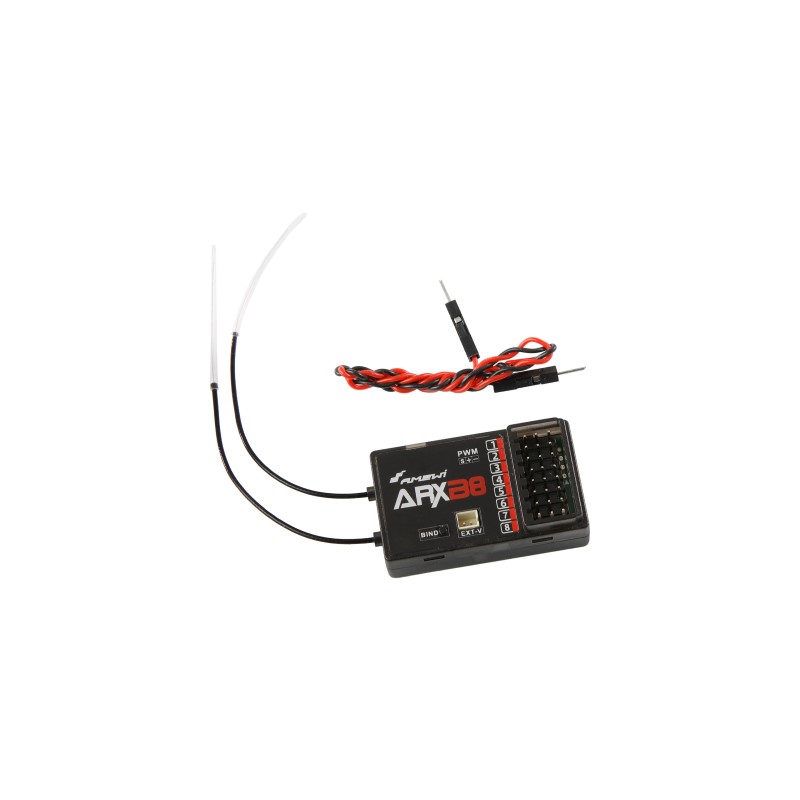

Technical data Recipient:
Length: 40mm
Width: 22mm
Height: 12mm
Weight: 8g
Channels: 8
Frequency: 2.4GHz FHSS
Input voltage: 4-9V
Scope of delivery:
Remote control
Recipient
Battery Telemetry connector
Hexagon socket key
USB-C cable
Instructions DE/EN
Required accessories:
4x 1.5V AA Mignon battery
2x 18650 Li-ion cells or 2S 7.4V LiPo battery with XH balancer
LiPo charger
