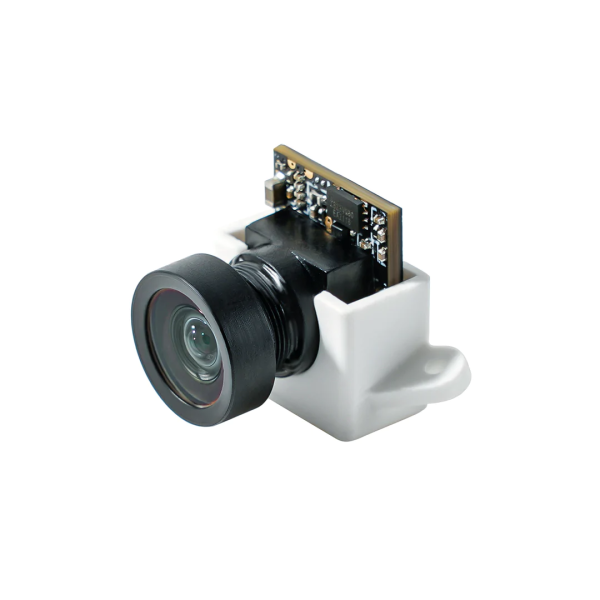

C03 FPV Micro Camera, specially designed for indoor micro FPV quadcopters, comes with a 1.52g lightweight, 1/3” CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency. Recommend using C03 FPV Micro Camera with BETAFPV Micro Canopy.
Bullet Points
- Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
- Miniature, and lightweight design, weighing only 1.52g. Completely match with M03 5.8G VTX on micro whoop drone.
- 1200TVL resolution and 1/3″ CMOS sensor ensure a high-quality and clear image
- Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
- 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.
Specification
- Item: C03 FPV Micro Camera
- Image Sensor: 1/3″ CMOS Sensor
- Horizontal: 1200TVL with Global WDR
- Signal System: NTSC (4:3)
- Lens : 2.1mm(M7) FOV 160°
- S/N Ratio: >50db
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Auto
- Day/Night: Color
- Power: DC 3-5.5V
- Current: 100mA@5V / 120mA@3.3V
- Housing Material: ABS
- Dimension: 11*14.1*13.5mm
- Net weight: 1.52g
Plug-N-Play Connector
C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.
Recommend Parts
- Canopy: BETAFPV Canopy for Micro Camera 2022
- VTX: BETAFPV M03 5.8G VTX
- FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers
- Drones: Meteor65/75 drones, or other micro whoop drones in the market.
Package
- 1 * C03 FPV Micro Camera
- 4 * M1.4*5 Screws
