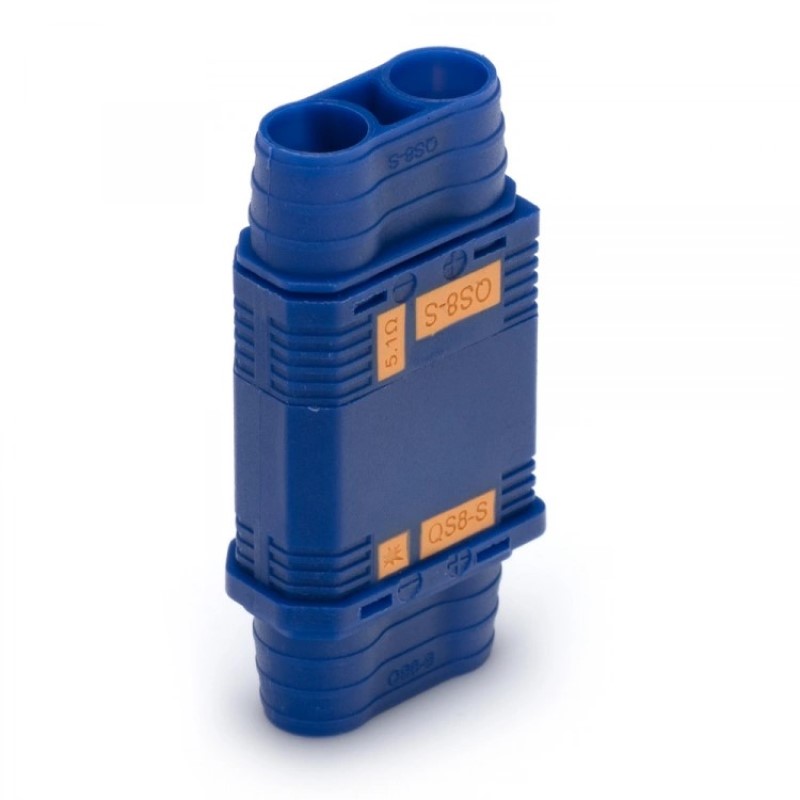

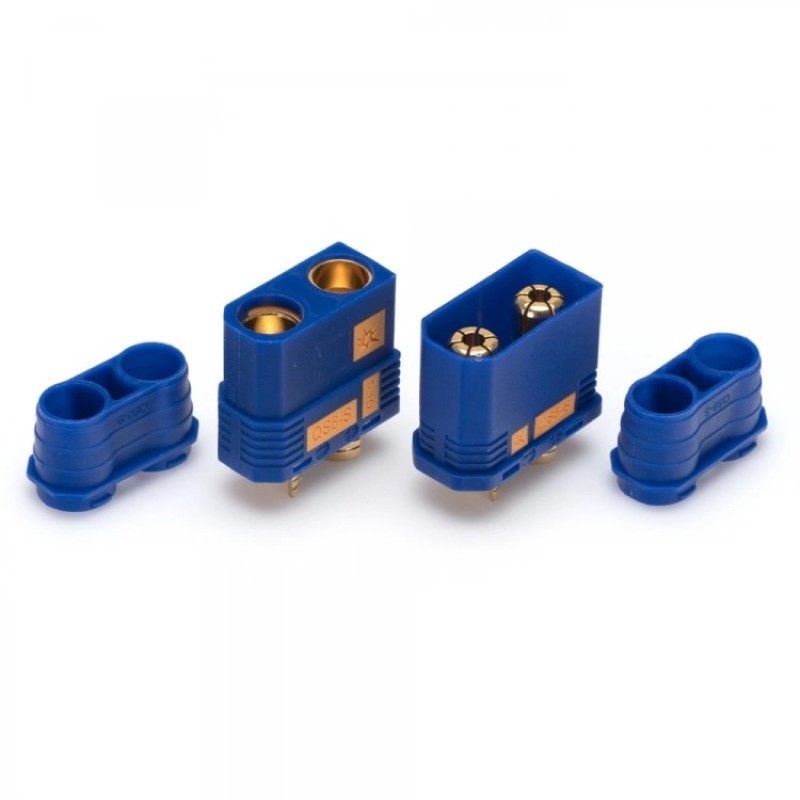

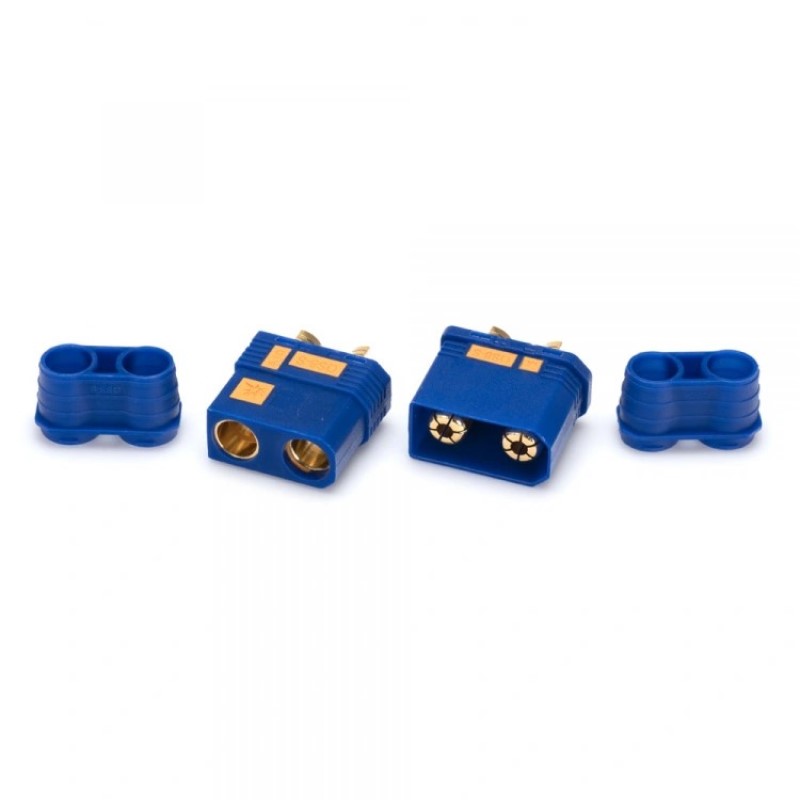

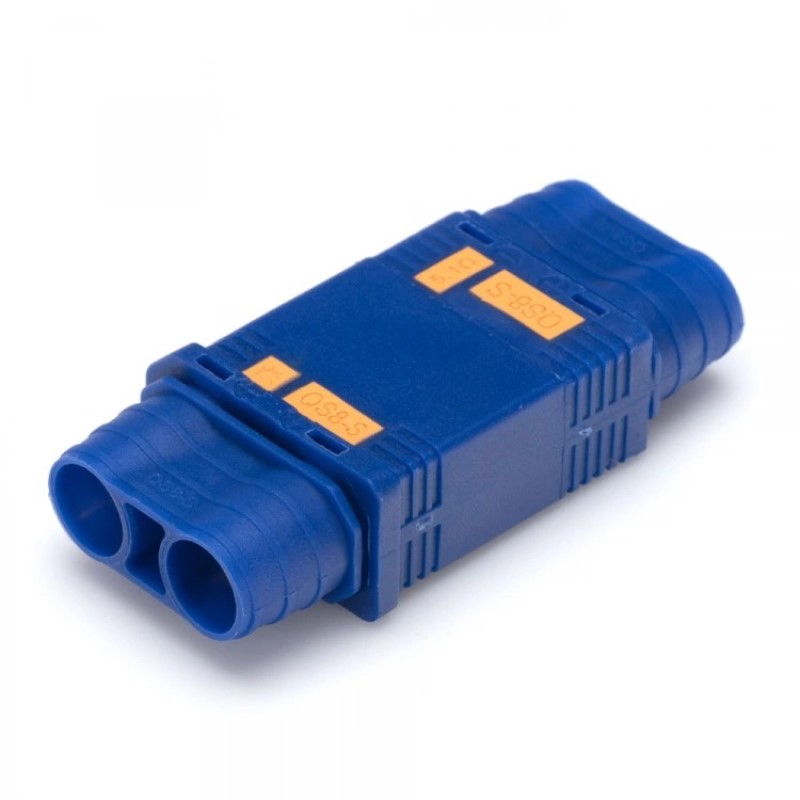

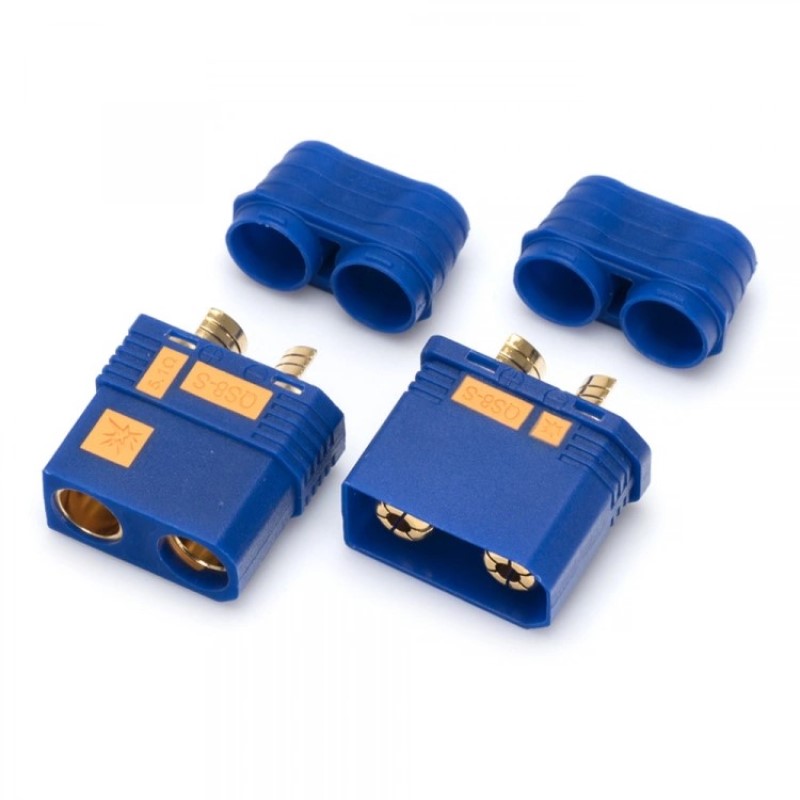

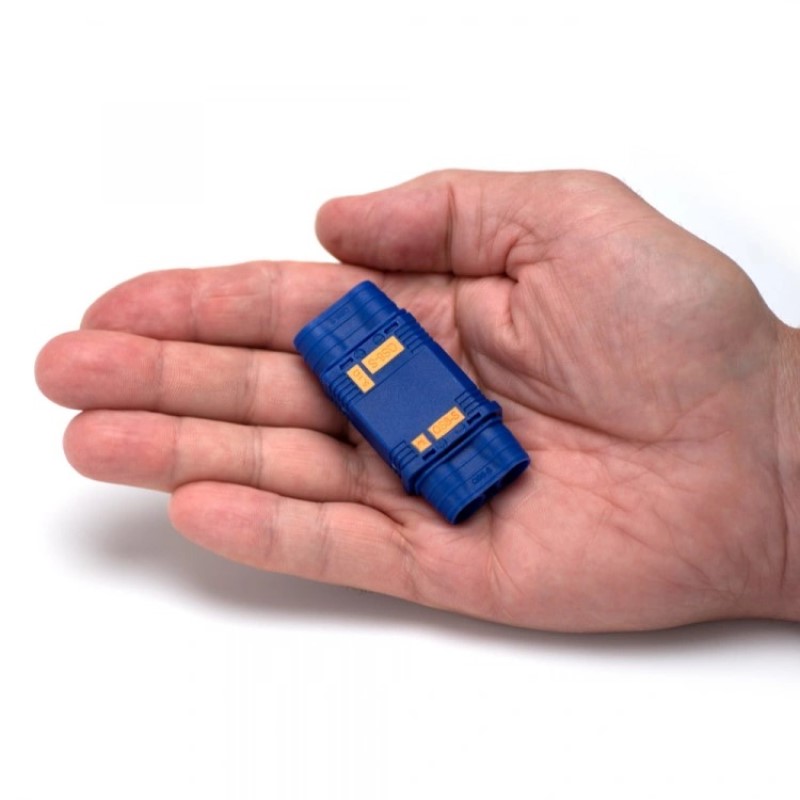

D-Max Connector QS8-S Anti-Spark (8mm) Pair

D-MAX QS8-S Anti-Spark Heavy Duty 8mm Connector

This is a heavy duty gold plated connector with built-in antispark resistors that are great for high powered electric models.

The QS8-S connector gives you a constant charging of the capacitors on the ESC and allows the battery to be connected without sparks on your ESC when you first plug in.

Features:

HEAVY DUTY
Built in Anti-Spark Function (5.1 ohm resistor)
Not compatible with our EC8 connector

Specs:

Continuous Current: 110A
Max Peak Current: 500A
Max Wire Size: 6AWG (aprox 6-7mm dia of the exposed wire)
Max outer dia of the wire insulation: 8.8mm
Connectors: 8mm Gold Plated Brass
Case Material: Fiber Reinforced Nylon
Length (total assembled): 60.9mm
Width: 29.7mm
Height: 15.4mm
Weight: 41.7g
