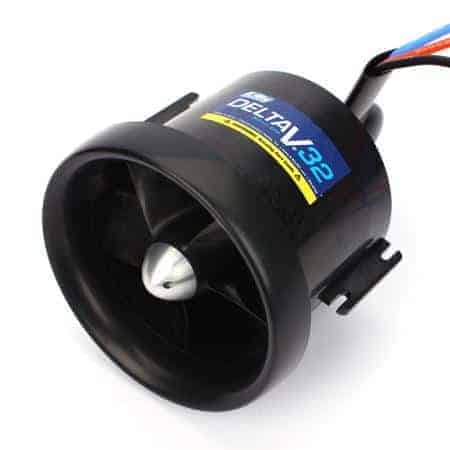

Delta-V (R) 32 80mm EDF Unit by E-flite

Key Features

• High-performance, efficient design with quick assembly time
• Injection-molded, high-strength fiberglass-filled Polyphenylene Sulfide [PPS] plastic

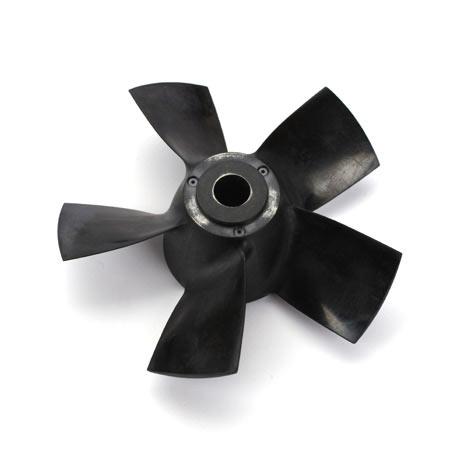

• Factory-balanced 80mm 5-blade rotor design and aluminum spinner
• Includes center body fairing to reduce drag

Overview

E-flite’s Delta-V 32 80mm EDF (EFLDF32) electric
ducted fan unit is an ideal choice for products such as E-fliteΆs Habu
32 DF and other similar sized ducted fan airplanes. The Delta-V 32 80mm
EDF is also an ideal choice for ducted fan airplanes requiring 80mm
diameter fan units. The BL32 Ducted Fan Brushless Motor, 2150Kv
(EFLM3032DFA) is purpose-built for this Delta-V 32 80mm EDF and both
products will provide great performance.

Tech Notes

Delta-V 32 80mm EDF Specifications

Rotor Diameter: 80.0mm (3.15 in)
Shroud Outside Diameter: 83.0mm (3.25 in)
Shroud Length: 66.0mm (2.60 in)
Shroud Length (Including Intake Ring): 82.0mm (3.20 in)
Motor Casing Diameter: 28.3mm (1.10 in)
Overall Weight: 116 g (4.10 oz)

Delta-V 32 80mm EDF Performance
Installed Data*

Installed Static Thrust: 4.50 lbs
RPM: 38,500
Watts: 1,400
Current: 62A
* Data measured installed in Habu 32 DF using BL32 DF Brushless Motor, 2150Kv & 6S 5000mAh 30C Battery

Static Data*

Static Thrust: 5.40 lb on 6S (21.9V)
RPM: 39,640 on 6S (21.9V)
Watts: 1,160 on 6S (21.9V)
Current: 53A on 6S (21.9V)
*Data measured in lab conditions using bell mouth intake and tail pipe measuring 159mm in length with 72.0mm exit diameter
