DJI O4 Air Unit

Διαθεσιμότητα:

Σε απόθεμα


Features:

6km Digital Video Transmission
1080p/100fps Live View
4K/60fps Video
1/2-inch CMOS Sensor
Compatible With Various Goggles and Remote Controllers

119,00

Σε απόθεμα

DJI O4 Air Unit Series
Flagship FHD FPV Digital Video Transmission

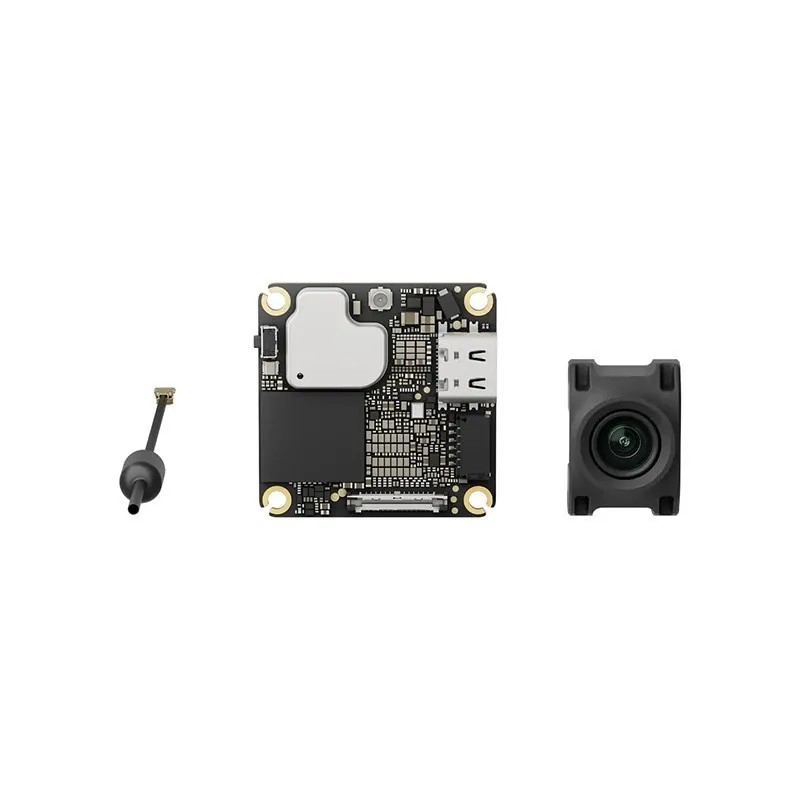

DJI O4 Air Unit
Weight Air Unit (camera module excluded): Approx. 5.1 g
Air Unit (camera module included): Approx. 8.2 g*
Antenna: Approx. 0.75 g

* The lens mount is not included. With the lens mount, the weight is 9.2 grams.

Dimensions Transmission Module: 30×30× 6 mm (L×W×H)
Camera Module: 13.44×12.36×16.50 mm (L×W×H)
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Antenna: 80 mm
Video Transmission
Operating Frequency 5.170-5.250 GHz
5.725-5.850 GHz

Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

Transmitter Power (EIRP) 5.1 GHz: <23 dBm (CE)
5.8 GHz:
<30 dBm (FCC)
<14 dBm (CE)
< 30 dBm (SRRC)
Lowest Latency With DJI Goggles 3 and pick racing mode:
With 1080p/100fps video transmission quality, the latency is as low as 20 ms.
With DJI Goggles N3 and pick racing mode:
With 1080p/100fps video transmission quality, the latency is as low as 24 ms.
With DJI Goggles 2 or Goggles Integra:
With 1080p/100fps video transmission quality, the video transmission latency is less than 35 ms.

Latency data represents the minimum latency during the screen refresh process of DJI Goggles.Tested in an outdoor open environment without interference. The video transmission latency data varies with different devices.

Max Video Transmission Range With DJI Goggles 3/DJI Goggles N3:
10 km (FCC), 6 km (CE), 6 km (SRRC)

Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range under various standards . The actual maximum communication range during flight is limited by the flight endurance of the aircraft. Always pay attention to RTH reminders in the app during your flight.

Live View Quality 1080P@30/50/60/100fps
Communication Bandwidth Max 60 MHz
Antenna 1 antenna, 1T1R
Channels Supports auto mode
Supports manual mode:
With DJI Goggles 3 or DJI Goggles N3:
60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel
With DJI Goggles 2 or Goggles Integra:
40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Channels Info FCC/SRRC/CE:
60MHz/40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5789.5 MHz
Channel 3: 5814.5 MHz
Camera
Image Sensor 1/2-inch CMOS Sensor
Lens FOV: 117.6°
The equivalent focal length: 14 mm
Aperture: f/2.8
Focus: 0.6 m to ∞
ISO Range 100-6400 (Auto)
100-12800 (Manual)
Video Resolution 4K (4:3): 3840×2880@30/50/60fps
4K (16:9): 3840×2160@30/50/60fps
1080p (4:3): 1440×1080@30/50/60/100/120fps
1080p (16:9): 1920×1080@30/50/60/100/120fps
Video Format MP4
Max Video Bitrate: 100 Mbps
Color Mode Normal Mode
Camera FOV Standard
Wide-Angle
EIS RockSteady 3.0+
Stabilization function off (supports Gyroflow)

When RockSteady is enabled, the shooting angle only supports standard.

Hardware
Input Voltage 3.7-13.2 V
Operating Temperature -10° to 40° C
Storage
Built-in Storage 23GB
Supported SD Cards Not supported
Recommended microSD Cards Not supported
Compatibility
Supported Flight Controller System Betaflight 4.3.0 and higher versions
Supported DJI Goggles and Remote Controllers DJI Goggles 3 + DJI FPV Remote Controller 3
DJI Goggles N3 + DJI FPV Remote Controller 3
DJI Goggles 2/Goggles Integra + DJI FPV Remote Controller 2

The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.

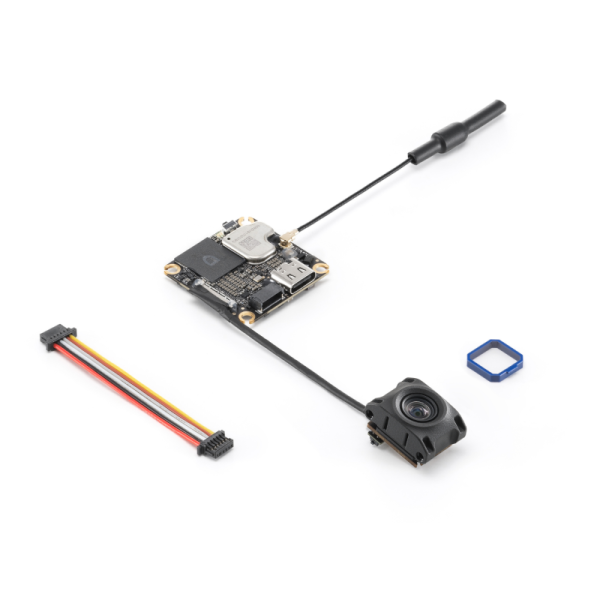

In the Box:

DJI O4 Air Unit Camera Module x1
DJI O4 Air Unit Transmission Module x1
DJI O4 Air Unit Antenna x2
DJI O4 Air Unit 3-in-1 Cable x1
