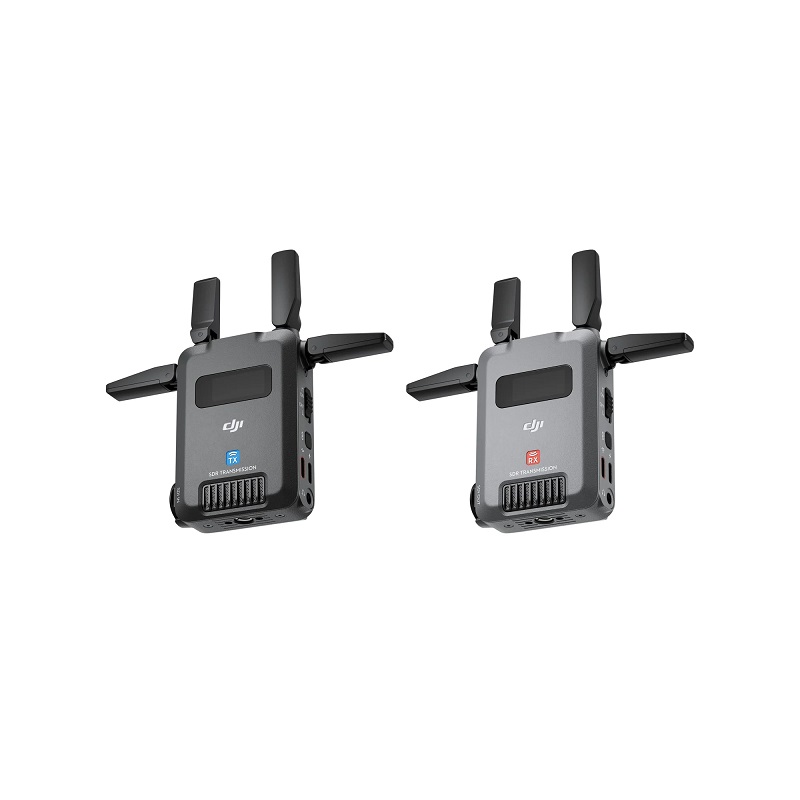

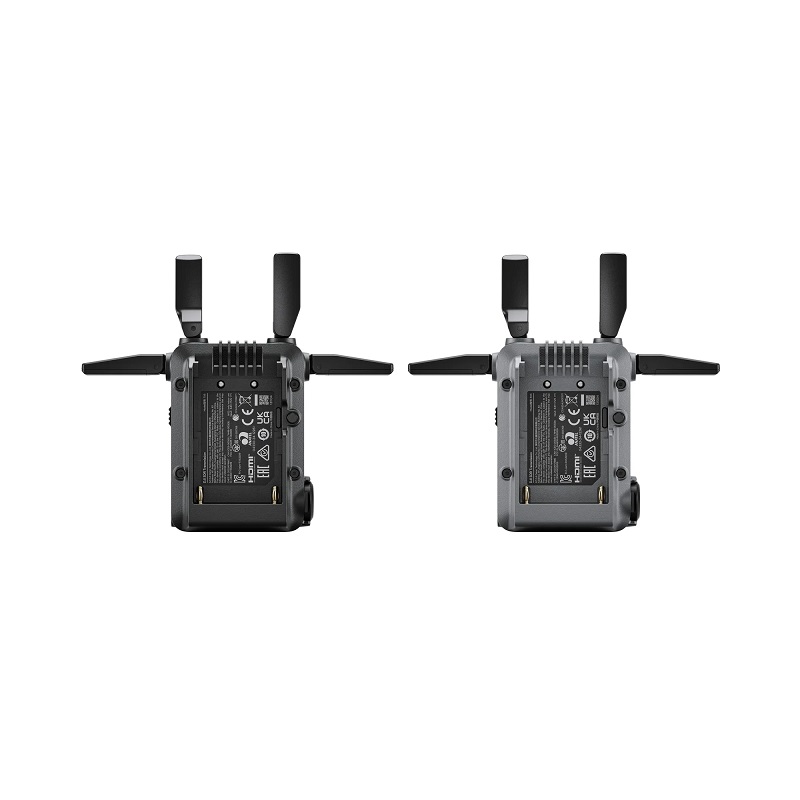

DJI SDR Transmission Combo

Διαθεσιμότητα:

Σε απόθεμα
Αγαπημένα
Σύγκριση
  • Complete Receiver/Transmitter System
  • SDR Tri-Bandwidth Technology
  • DFS, 2.4 & 5.8 GHz with Auto Hopping
  • Up to 1080p60 Resolution
  • Range of up to 1.9 Miles
  • Broadcast & Control Modes
  • Ronin Compatible
  • HDMI, SDI & USB-C Connections
  • High Bit Rate up to 20 Mb/s
  • 35ms Low Latency

619,00€

Σε απόθεμα

Αγαπημένα

Product Overview

The DJI SDR Transmission revolutionises video transmission with cutting-edge Software-Defined Radio (SDR) technology, offering unparalleled stability, interference resistance, and penetration capabilities. Complemented by flexible Wi-Fi transmission modes, this system meets the diverse needs of professional videography and monitoring.

Main Features:

  • 20,000ft 1080p/60fps Transmission
  • Unlimited Number of Receivers
  • Seamless Auto Frequency Hopping
  • End-to-End Ultra-Low Latency
  • Transmits Metadata via SDI
  • Dual-link SDI + HDMI simultaneous output

Strong & Stable

Built around Software-Defined Radio technology, DJI SDR Transmission utilises both SDR and Wi-Fi video transmission modes. SDR technology elevates video transmission performance, offering enhanced stability, interference resistance, and penetration capabilities. For instances requiring temporary monitoring, DJI SDR Transmission also accommodates Wi-Fi transmission to provide teams with increased flexibility.

Kilometer-Level Transmission & Robust Penetration

DJI SDR Transmission can reach up to 3 km/10,000 ft, accommodating wide-area, dynamic filming scenarios. Coupled with superior penetration capabilities, it meets on-site live feed monitoring demands in various complex scenarios.

High Bitrate & Image Quality

DJI SDR Transmission supports 1080p/60fps live feeds, with a high bitrate of up to 20 Mbps, ensuring smooth monitoring and collaboration.

Unlimited Receivers In Broadcast Mode

Each transmitter connects to unlimited receivers, providing high-quality monitoring for multiple collaborators.

Real-Time Voice Communication

Enables seamless one-on-one conversations between cinematographer and director or client.

Agile & Innovative Monitoring

Weighs approximately 145 g with foldable antennas for easy storage and versatile mounting. Supports multiple monitoring methods via SDI/HDMI outputs and direct Wi-Fi connections to smartphones/tablets. USB-C output offers stable and convenient monitoring.

DJI Ronin App Integration

Seamlessly switch between camera views within the app. Supports recording and playback with professional monitoring tools like LUT, peaking, waveform, and false colour.

Comprehensive Connectivity & Power Supply Solutions

USB-C for power, firmware updates, gimbal communication; HDMI/SDI inputs for 1080p/60fps video. USB-C for firmware updates and video output; HDMI/SDI outputs for 1080p/60fps video and audio. Compatible with DJI RS series gimbals, NP-F batteries, and PD protocol USB-C chargers.

Specifications:



Transmitter
Weight
Approx. 145 g (including antennas)
Dimensions
86.5×64×32 mm (L×W×H, excluding antennas)
Ports
SDI Input Port
HDMI Input Port
3.5mm Stereo Jack
USB-C Firmware Update Port
USB-C Power and Gimbal Communication Port
Operating Frequency
SDR Operating Frequency
Non-DFS Frequency Band:
2.4000-2.4835 GHz
5.725-5.850 GHz
DFS Frequency Band:
5.470-5.725 GHz
5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.
Wi-Fi Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz
Transmitter Power (EIRP)
SDR:
2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (SRRC/CE/MIC)
5.470-5.725 GHz:
< 30 dBm (FCC)
< 23 dBm (CE/MIC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 14 dBm (CE)
＜30 dBm (SRRC)
Wi-Fi:
2.4000-2.4835 GHz:
< 26 dBm (FCC)
< 20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz:
< 26 dBm (FCC)
< 23 dBm (SRRC/CE/MIC)
Wi-Fi Protocol
802.11b/a/g/n/ac/ax
Supports 2×2 MIMO Wi-Fi
Max Bandwidth
SDR:
20 MHz
Wi-Fi:
20 MHz
Max Bitrate
SDR:
20 Mbps*
Wi-Fi:
8 Mbps
* Measured in Control mode, with Broadcast mode turned off.”
Power Consumption
8.2 W
Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.
Power Supply
USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.2 V DC
NP-F Battery Power Supply Voltage: 6.8-8.4 V
Input Video Format
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
720p: 50/59.94/60fps
Input Audio Format
SDI embedded, HDMI embedded
Video Transmission System
SDR + Wi-Fi
Video Transmission Latency
SDR:
80 ms* (including camera and screen display latency)
35 ms* (excluding camera and screen display latency)
Wi-Fi:
110 ms**
* Measured when shooting 1080p/60fps video with Broadcast mode turned off.
** Measured when shooting 1080p/60fps video.
Video Coding Format
H.264
Max Transmission Distance
SDR:
3 km (FCC)*
2 km (CE/SRRC/MIC)*
Wi-Fi:
200 m
* Measured in Control mode, with Broadcast mode turned off.”
Operating Temperature
-10° to 40° C (14° to 104° F)
Receiver
Weight
Approx. 145 g (including antennas)
Dimensions
86.5×64×32 mm (L×W×H, excluding antennas)
Ports
SDI Output Port
HDMI Output Port
3.5mm Stereo Jack
USB-C Firmware Update and Video Output Port
USB-C Power Port
Operating Frequency
SDR Operating Frequency
Non-DFS Frequency Band:
2.4000-2.4835 GHz
5.725-5.850 GHz
5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information.
Transmitter Power (EIRP)
SDR:
2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (SRRC/CE/MIC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 14 dBm (CE)
< 23 dBm (SRRC)
Max Bandwidth
20 MHz
Max Bitrate
20 Mbps
Measured in Control mode, with Broadcast mode turned off.
Power Consumption
8.3 W
Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.
Power Supply
USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.2 V DC
NP-F Battery Power Supply Voltage: 6.8-8.4V
Output Video Format
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
720p: 50/59.94/60fps
Output Audio Format
PCM
Video Transmission System
SDR
Video Transmission Latency
80 ms (including camera and screen display latency)
35 ms (excluding camera and screen display latency)
Measured when shooting 1080p/60fps video with Broadcast mode turned off.
Video Coding Format
H.264
Max Transmission Distance
3 km (FCC)
2 km (CE/SRRC/MIC)
Measured in Control mode, with Broadcast mode turned off.
Operating Temperature
-10° to 40° C (14° to 104° F)

In the Box

1× DJI SDR Transmission Transmitter (TX)
1× DJI SDR Transmission Receiver (RX)
1× USB-A to USB-C Cable (43 cm)
1× TX Camera Mounting Adapter Plate
1× TX Gimbal Mounting Adapter Plate
