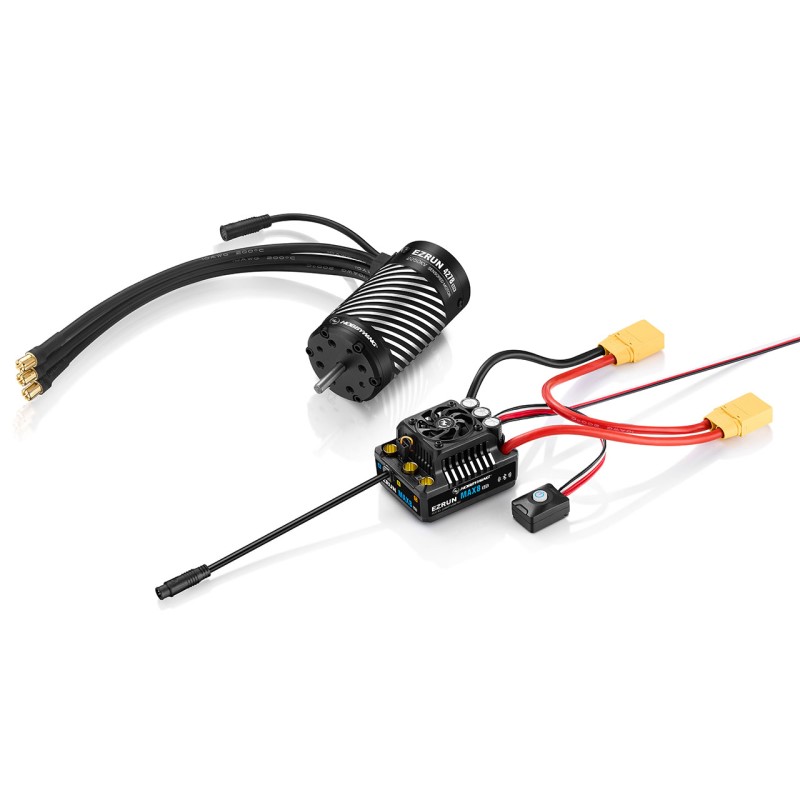

Combining the EZRun MAX8 G2S with the new 4278 SD G2R motor creates the perfect 1/8 basher combo! The ESC and motor are precisely tuned to work seamlessly together, delivering optimal performance. The integrated overheating protection prevents motor damage and simplifies handling.
Replacement of HW38020476.
Features
Ultra-powerful BEC 6V/7.4V/8.4V
25% more power!
Multiple protection mechanisms (low voltage, overheating, signal loss, and more)
Includes turbo timing setting
Real-time data logging
Excellent throttle response
Faster performance with consistent output
IP-67 standard (dust- and waterproof)
Easy-to-disassemble motor for maintenance
Technical Data
ESC
Type: Brushless Sensored
Current (Continuous/Peak): 160A/1050A
Cell Count: 3-6S LiPo
Motor Limit: 4S LiPo: <= 3000kV
6S LiPo: <= 2400kV (4278 motors)
BEC: 6V/7.4V/8.4V @ 6A
Battery Connector: XT90
Dimensions: 60x48x40.5mm
Weight: 192g
Waterproof: Yes, IP67
Motor
Type: Brushless, Sensored
RPM: 2250kV
No-Load Current: 5.3A
Cell Count: 3-6S LiPo
Number of Poles: 4
Length: 78mm
Diameter: 42mm
Shaft Diameter: 5mm
Weight: 465g
Included in Delivery
1x Ezrun MAX8 G2S ESC
1x Ezrun 4278SD G2R Motor
