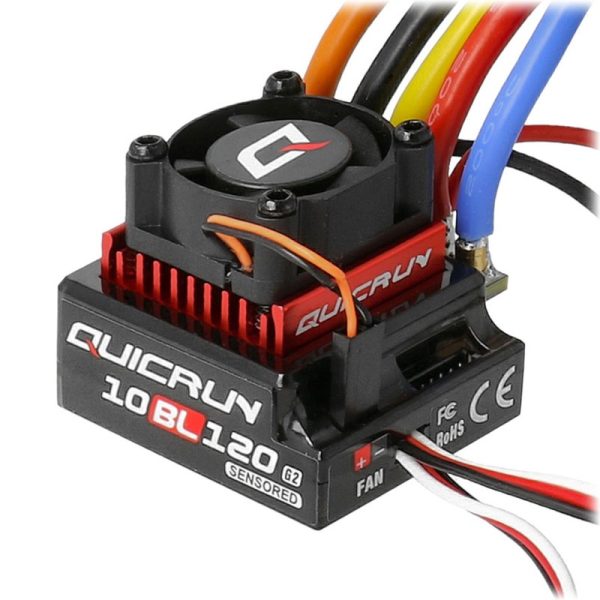

The second generation of the Quicrun 10BL120 ESC is a classic brushless solution for 1/10 cars such as touring cars, buggies and drifters. With an extended BEC and a variety of additional parameters, the controller is in no way inferior to its predecessor. Hobbywing’s QuicRun series offers a cost-effective alternative for all drivers who simply want to achieve more with their setups – whether with brushless motors or not. It is aimed primarily at beginners and advanced pilots and impresses with the outstanding, well-known quality of Hobbywing products as well as the uncomplicated commissioning.
Features:
More setting options than its predecessor (including turbo delay, turbo timing and boost timing)
Improved BEC output with switch instead of linear mode
Motor rotation direction freely selectable (CW or CCW)
Top performance at a low price
Compact design, suitable for a variety of chassis
Ideal for many areas of application and competitions
Various protective functions:
Overheating protection
Cutoff voltage
Technical Specifications:
Type: Brushless, Sensored
Current (cont./peak): 120A / 760A
Input Voltage: 2-3S Lipo
BEC: 6V / 7.4V @ 4A (Switch Mode)
Motor Types: Brushless Motors (with/without sensor)
Motor Limit: 2S: >= 4.5T, 3650 Motor
3S: >= 10.5T, 3650 Motor
Fan: Yes, powered by the BEC
Programming: SET Button
LED Program Box
LCD Program Box (G2)
Dimensions: 44 x 36.8 x 32.3mm
Weight: 101.5g
Application: 1/10 Touring, Buggy, Drift
Optional accessories:
HW30502001 LCD Program Box G2
HW30501003 LED Program Box
Delivery:

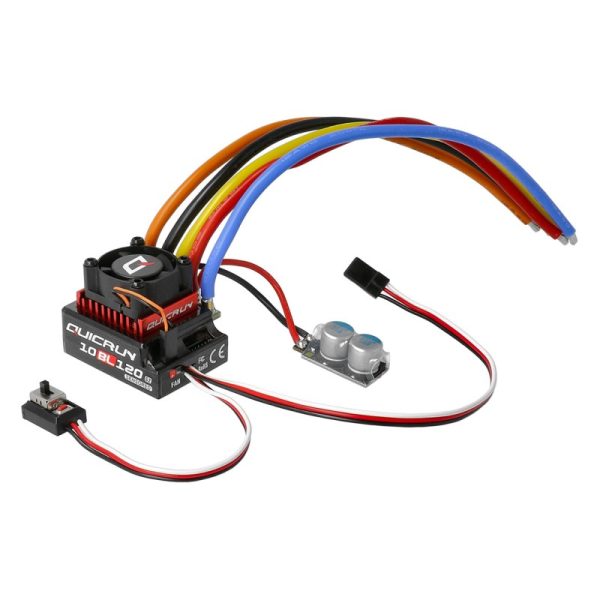

Quicrun 10BL120 G2 ESC
Manual (English)
Sticker & Mounting accessories
Programming table as a sticker for the LED programming box
