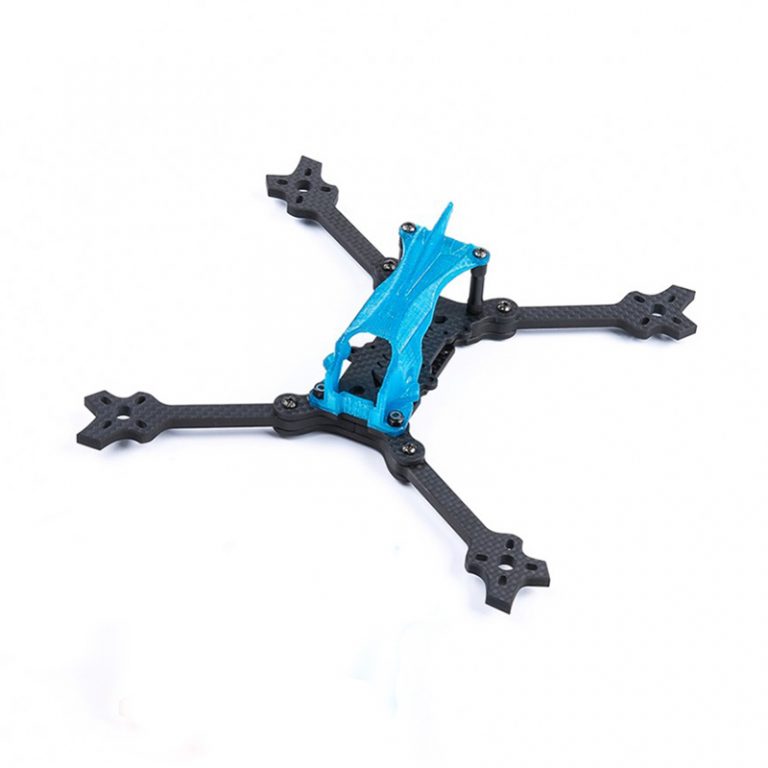

The iFlight DC5 was designed for the DJI Digital FPV System. It is also suited for a 5-inch propeller power system and flight controllers. The DC5 HD Frame design makes installation and maintenance easy. With the 5-inch propeller power system, users have ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.
Features：
-Full 3K Carbon Fiber airframe
-Easy arm swaps
-230mm wheelbase，137g
-Popular Deadcat style configuration, No prop in View
-Fits both 30.5x and 20x stacks
Specifications:
– Type: 5″ FPV Freestyle frame
– Frame wheelbase: 230mm
– Frame weight:137g approx
– Standoff: M3*25mm(4pcs), M3*32mm(4pcs）
– 5mm thickness, 11.3mm width arms,1.5mm vertical side plates
– 2mm top, the upper & bottom plate
– Mounting Holes: 30.5*30.5mm/20*20mm
– Support camera size: 19*19mm 22*22mm
– Recommended motors: 22xx, 23xx
Package included:
-1 x DC5 HD Frame
-1 x Screw Bag
-1 x TPU Camera mount adapters
-1 x TPU DJI Air Unit Bracket Mount
-1 x TPU DJI Air Unit Antenna Mount
-1 x Battery Anti-slip Mat
-2 x Battery Straps
