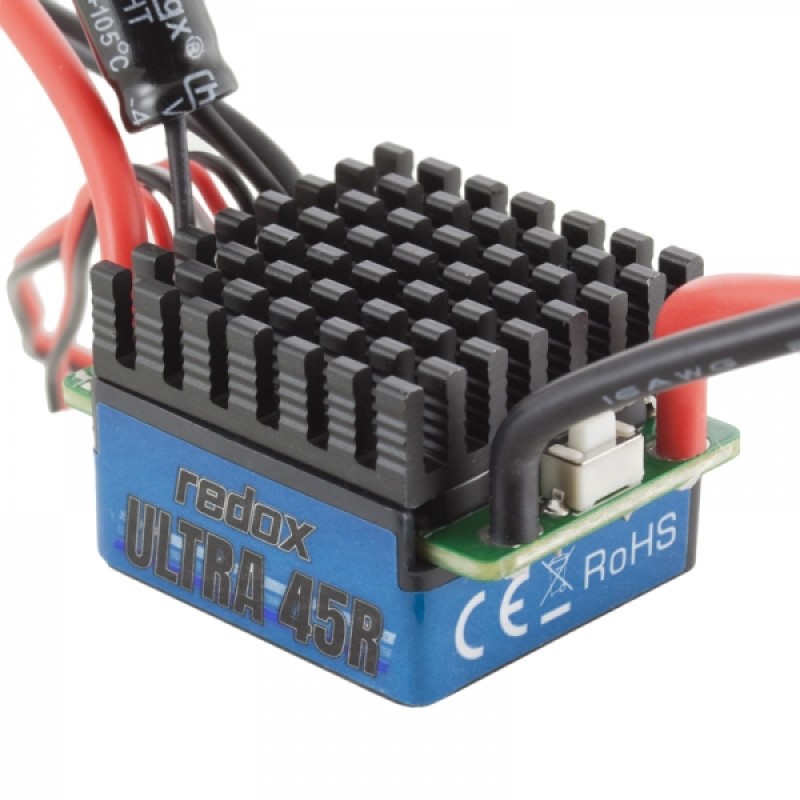

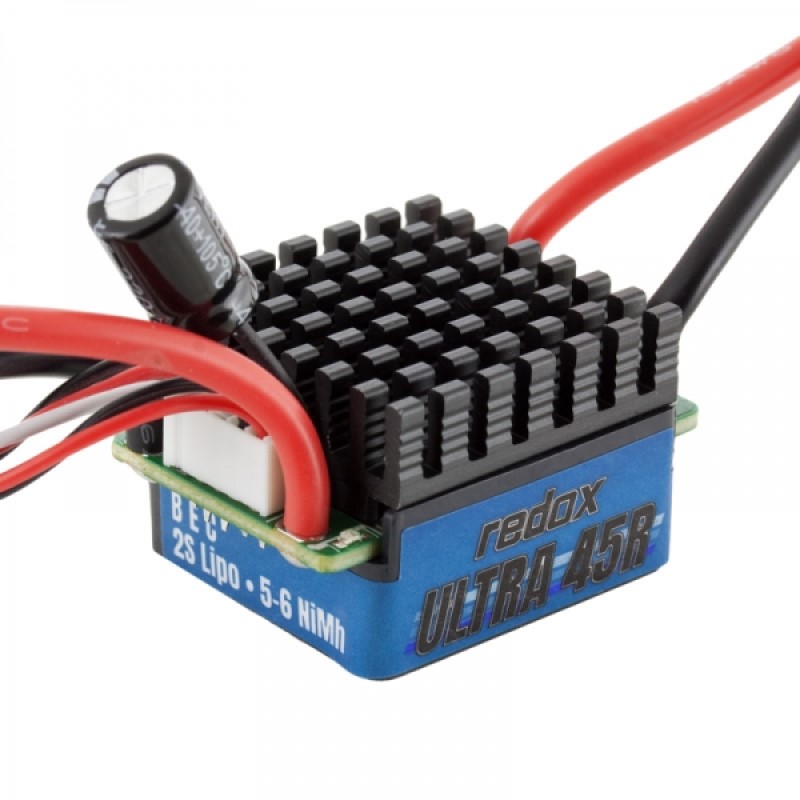

ULTRA 45R brushed ESC for brushed motors, manufactured by REDOX.
Designed for 400, 500, 600 class motors, suitable for cars and boats.
Main features:
Electronic, 2-way, proportional current ESC for brushed motors class 400, 500, 600.
Brake mode and reverse mode (passive brake, active brake)
Low voltage protection and MOFST overheat protection
Factory installed Quick-Start Program (start without wheel spin)
Stable at low speed
Linear gas curve – immediate response to acceleration
Technical data:
Weight: 38 g
Supply voltage: 2s LiPo (7.4 V) or 5-6s NiXX (6.0 – 7.2 V)
Continuous current: 45 A
BEC: linear, 5.6 V / 2 A
Engine winding limits: 10T / <30000 RPM
Attention! ESC is NOT waterproof. In case of installing the ESC on the boat, adequate moisture protection and level of cooling must be self-installed.
