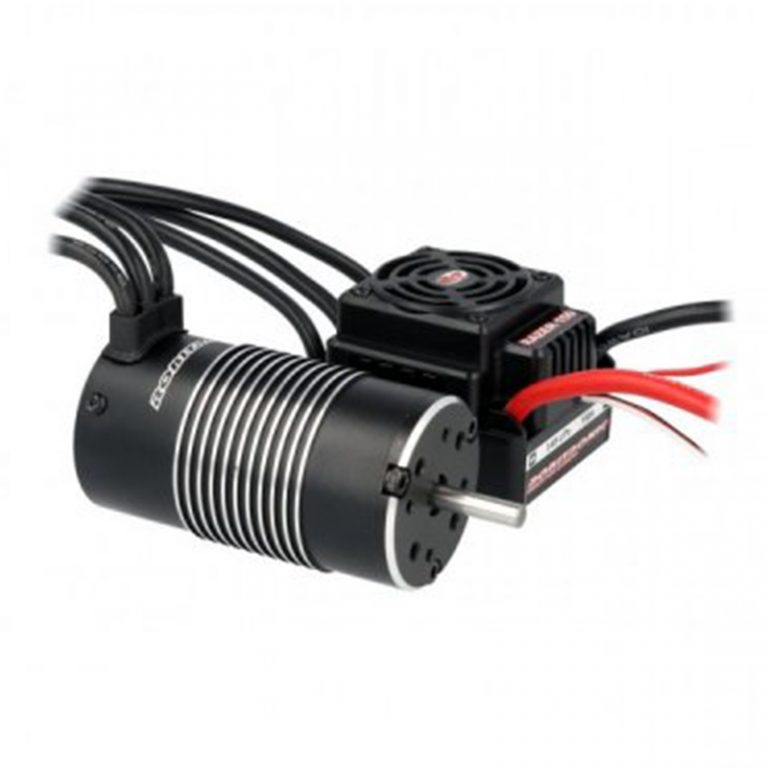

Robitronic Razer Еight Brushless Combo 150A 4274 2000kV

Διαθεσιμότητα:

Εξαντλημένο


Robitronic Razer Еight Brushless Combo 150A 4274 2000kV

169,00

Εξαντλημένο

Robitronic Razer Еight Brushless Combo 150A 4274 2000kV –  R01263.



ESC Specifications:

  • Completely waterproof and dustproof
  • ON / OFF switch with setup button
  • S-BEC with 6V and 5A peak current
  • Plug and Play, battery and motor plug already soldered
  • Multiple protections: undervoltage shutdown, thermal protection and protection against signal loss.
  • Simple programming via set button
  • Separate programming port, easy connection of the LED program card (optional)
Constant / peak current: 150A / 950A
Type: sensorless
Motor Limit: 4s LiPo: 4274er engine, <= 3000KV
6s LiPo: 4274er engine, <= 2400KV
Internal resistance: 0.00035 ohms
LiPo / NiMH battery pack: 3-6s LiPo / 8-18 cells MiMH
S-BEC: 6V / 5A
Programming Port: Yes
Dimensions LxWxH: 59.5x48x42mm
Weight: 178g
Application: 1/8 on- and off-road



Motor Specifications:



  • 4-pole rotor design for high torque and fast response
  • CNC machined, high-strength aluminum housing for optimum heat dissipation
  • Motor winding made of pure, double insulated copper wire
  • Precision ball bearing for best running smoothness and service life
  • Highly flexible silicone connection cable with soldered 4mm plugs
  • High strength and polished 5mm rotor shaft made of steel
KV (RPM/V): 2000KV
LiPo cells: 2s-6s
Pole: 4
Shaft diameter / length: 5mm / 18mm
Dimensions D / L: 42mm / 68mm
Weight (including cable) 412g
Application: 1/8 Truck, 1/8 Monster Truck
Κωδικός προϊόντος: R01263 Κατηγορία: Ετικέτα:
Βάρος 0.2 kg
