SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air/Plane/Boat/Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
KEY FEATURES
– Ideal for 1/10 on road applications
– incredible efficiency and low power consumption
– Aluminium case for good heat dissipation
– NMB dual main bearings
– 25T output shaft
Application :
1/10 On-road, 1/10 Off-road, 1/8 On-road, 1/8 Off-road
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless

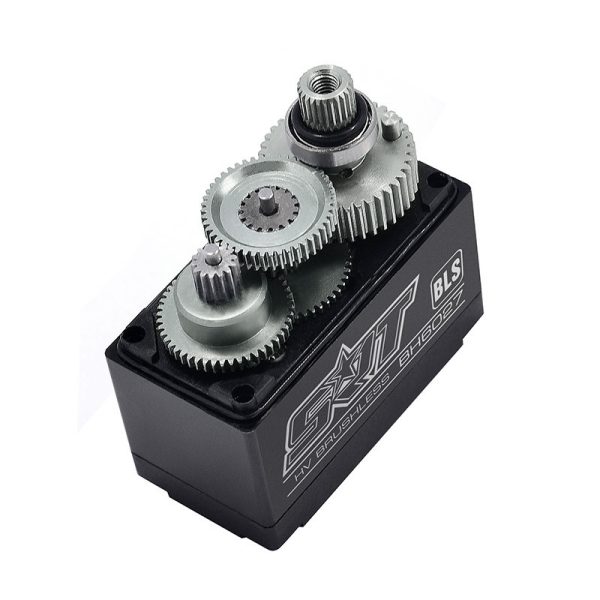

Gear Type: Metal
Gear Material: Titanium & Alu
Control system: pulse width control
Working frequency: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.10 sec/60 degrees at no load
Operating speed (7.4v): 0.08 sec/60 degrees at no load
Operating speed (8.4v): 0.075 sec/60 degrees at no load
Stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
Stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
Stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
Potentiometer drive: direct drive

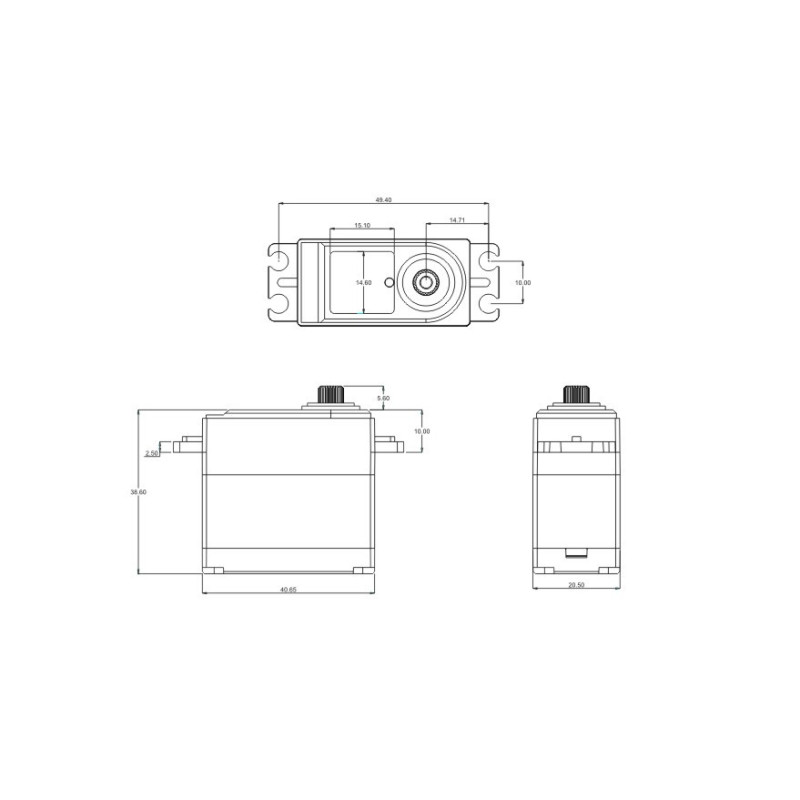

Dimensions: 40.7×20.5×38.5 mm /1.6×0.8×1.51 in
Weight: 65.0g (2.29 oz)
Connector wire length: jr 250 mm
