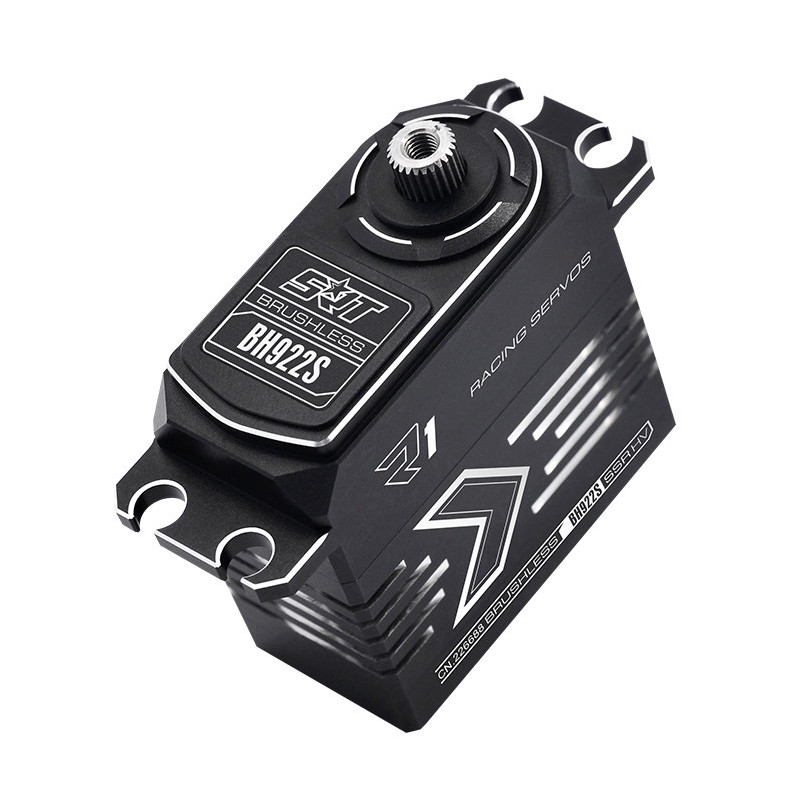

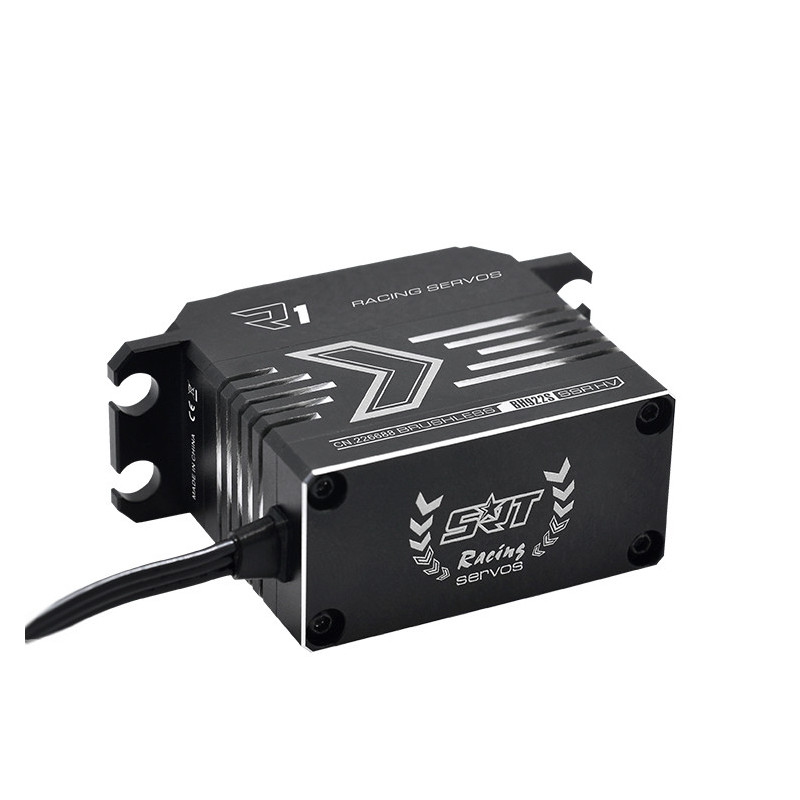

SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.08 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
operating speed (8.4v): 0.055 sec/60 degrees at no load
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57×0.79×1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 250 mm
