KEY FEATURES
– Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
– incredible efficiency and low power consumption
Р2 μsec Dead Band
Application :
1/10 on-road, 1/10 off-road, 1/8 on-road, 1/8 off-road as well as large scale airplanes and jets & electric boat & Robot
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC

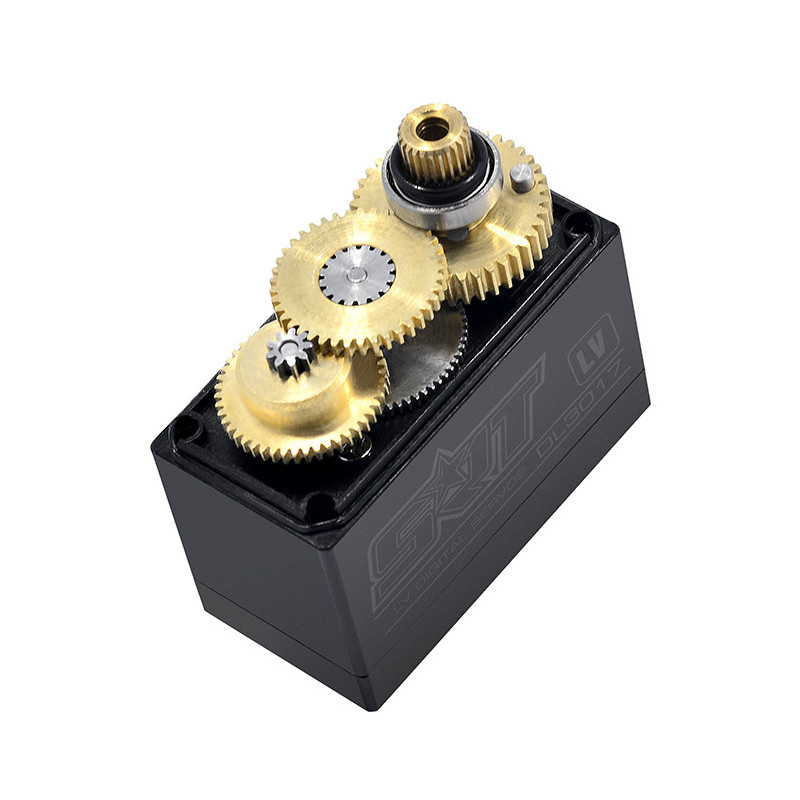

Gear Type: Metal
Gear Material: Titanium & Copper
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.17 sec/60 degrees at no load
operating speed (6.0v): 0.15 sec/60 degrees at no load
stall torque (4.8v): 15.5kg.cm (215.3 oz/in)
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
potentiometer drive: direct drive

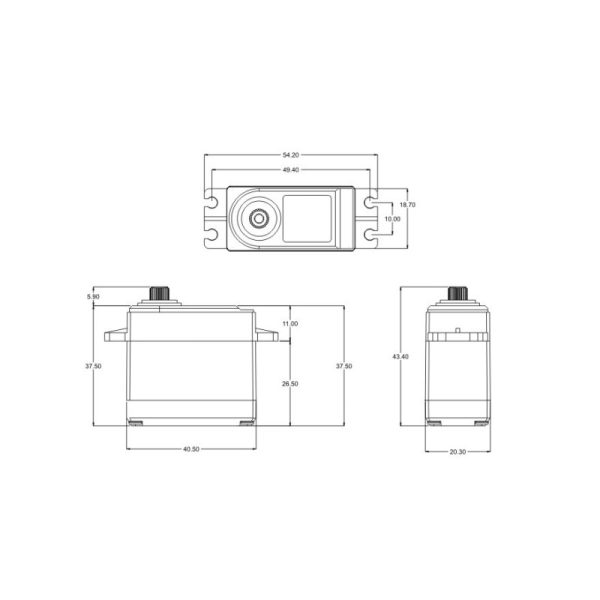

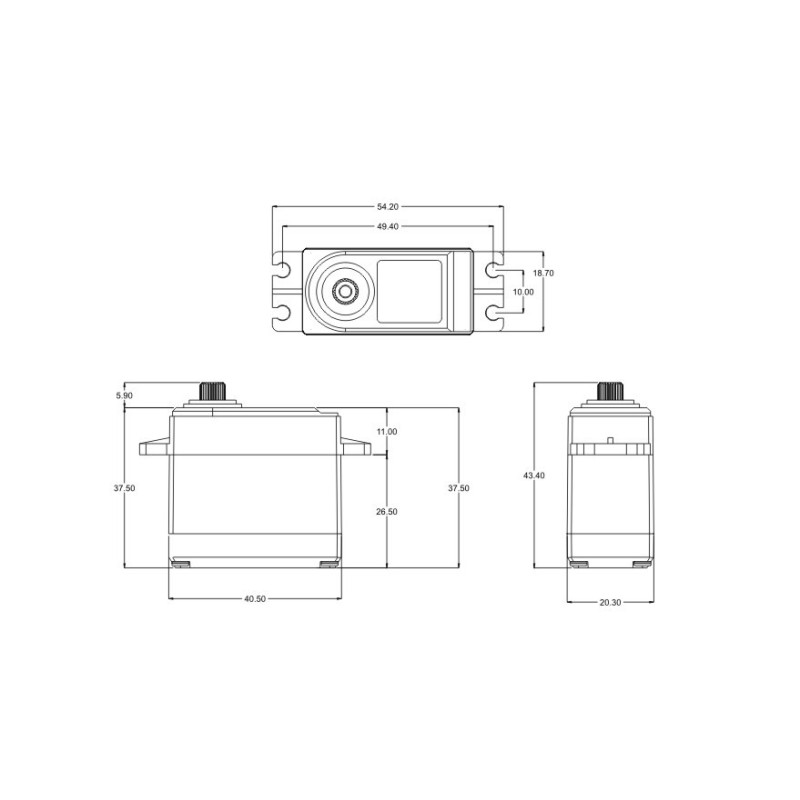

dimensions: 40.7×20.5×39.5 mm /1.6×0.8×1.55 in
weight: 63.0g (2.22 oz)
connector wire length: jr 250 mm
