SRT W35 HV 1/8-1/10 Crawler Traxxas 35kg 0.10s Digital Waterproof Servo

Διαθεσιμότητα:

Σε απόθεμα

SKU: SRT-W35

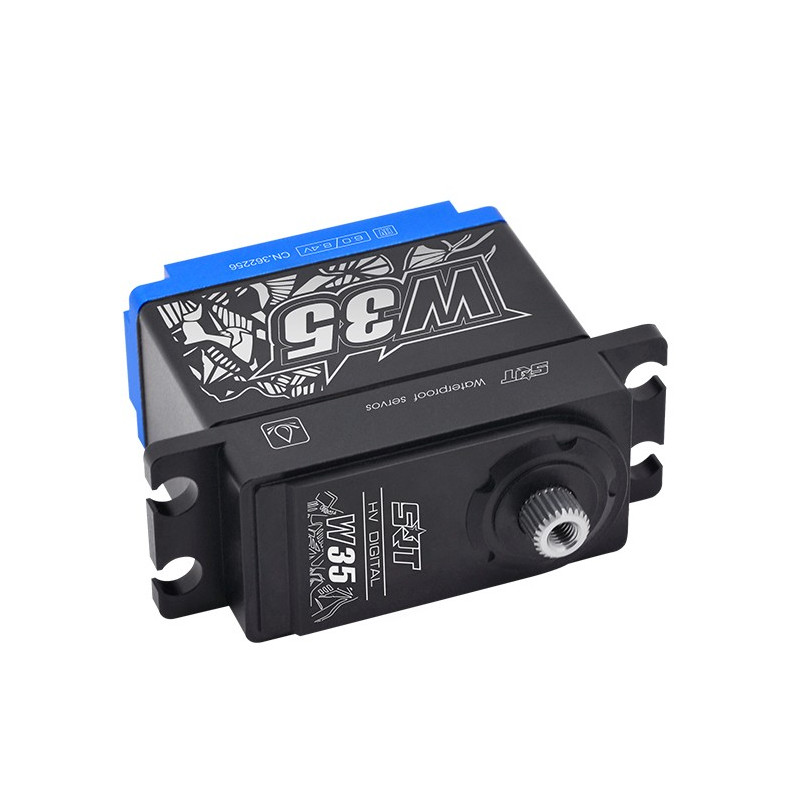

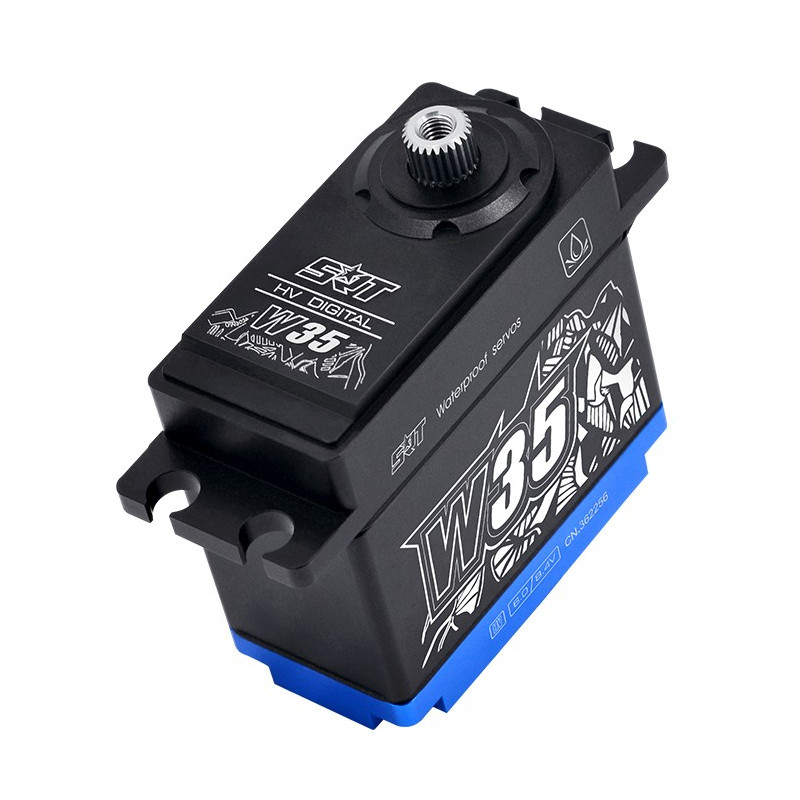

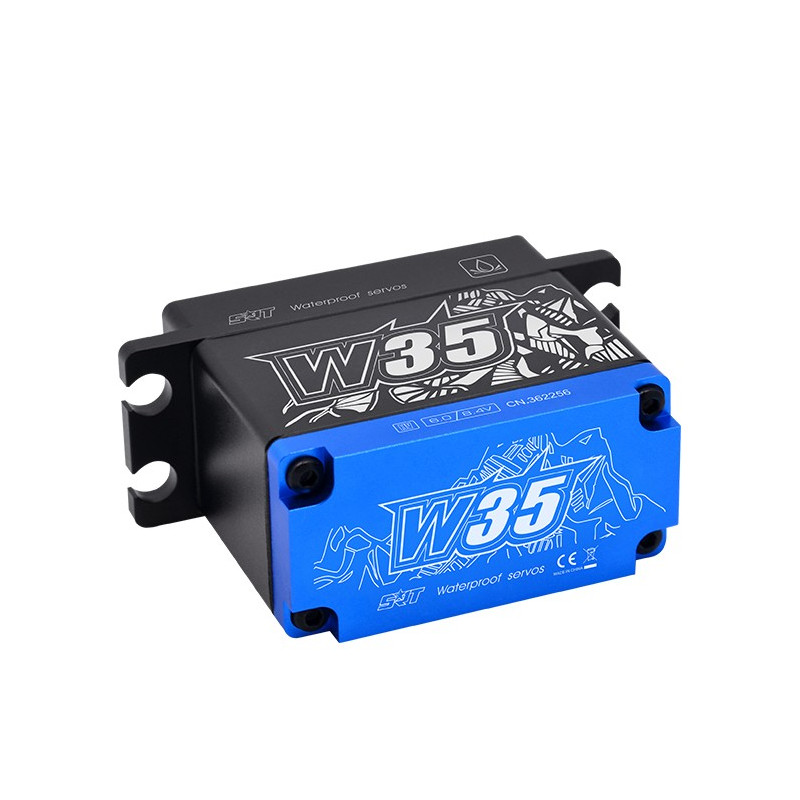

The Servo SRT W35 is an HV servo with up to 35kg of torque and waterproof, ideal as a steering servo for crawlers due to its steel and titanium pinions.

75,00

Σε απόθεμα

The Servo SRT W35 is an HV servo with up to 35kg of torque and waterproof, ideal as a steering servo for crawlers due to its steel and titanium pinions.

Characteristics:

• Ideal for 1/8 and 1/10 On-Road and Off-Road, tracks, etc.
• Aluminum box
• Raincoat
• Superior precision
• NMB dual main bearings
• 25T output pinion teeth

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.15 sec/60 degrees at no load
operating speed (7.4v): 0.12 sec/60 degrees at no load
operating speed (8.4v): 0.10 sec/60 degrees at no load
stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×38.6 mm /1.60×0.81×1.52 in
weight: 82.5g (2.91 oz)
connector wire length: jr 360 mm

EAN: 6969003503519
Κωδικός προϊόντος: SRT-W35 Κατηγορίες: , , Ετικέτα:
Βάρος 0.5 kg
