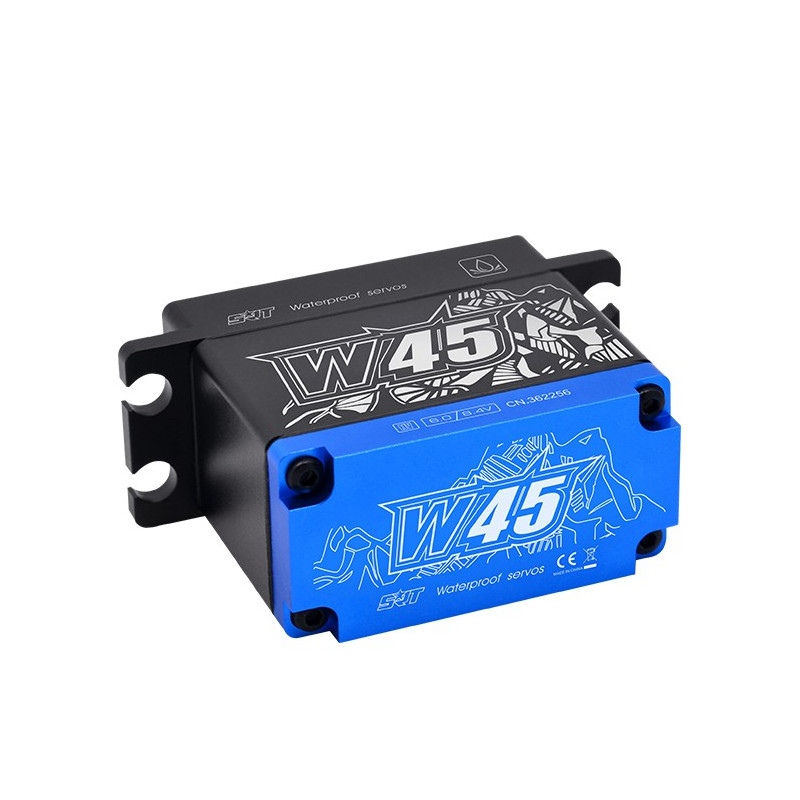

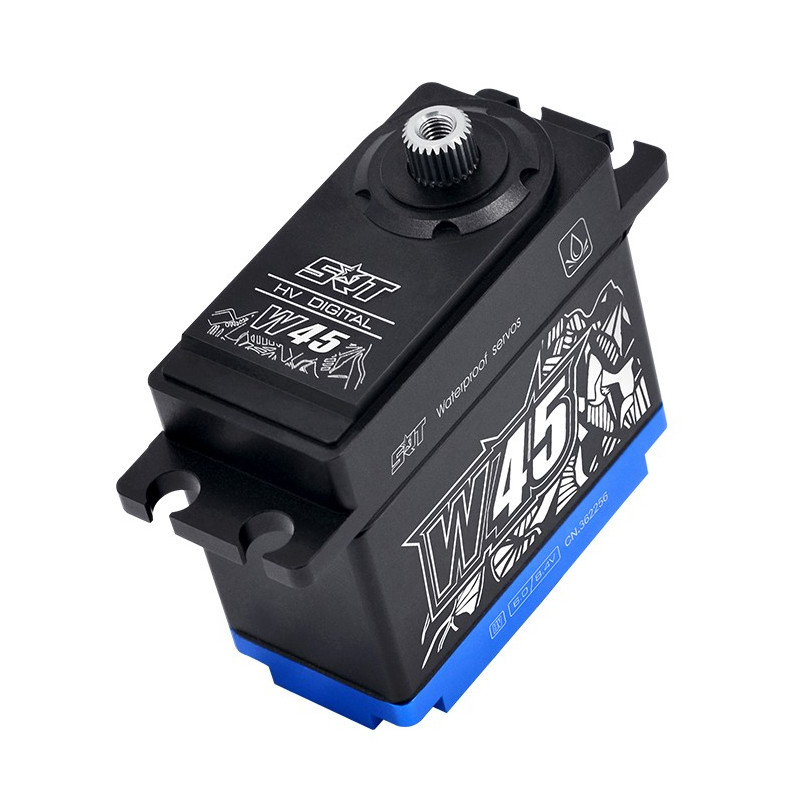

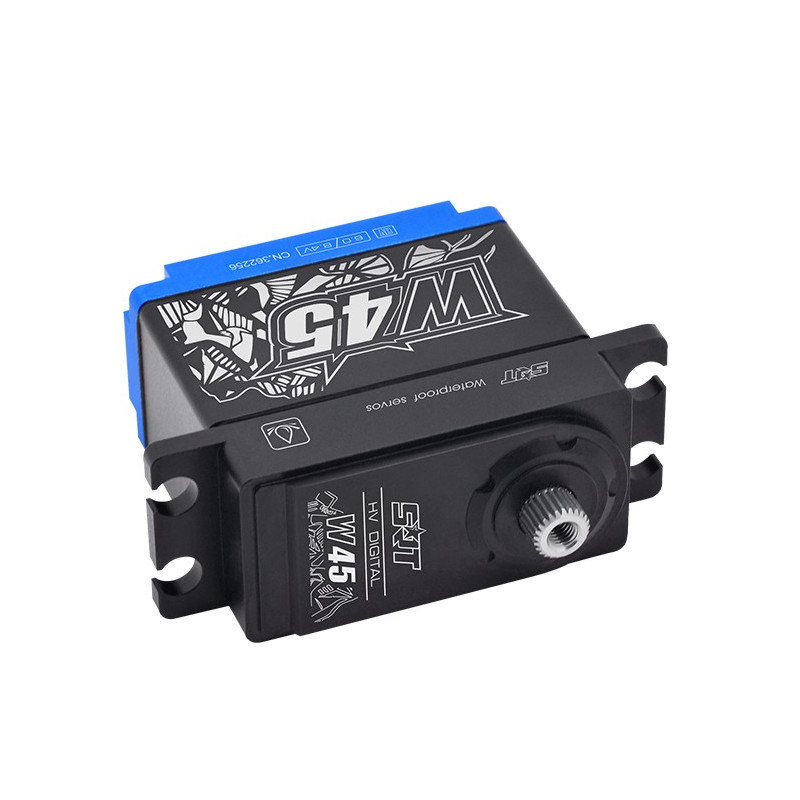

The Servo SRT W45 is an HV servo with up to 45kg of torque and waterproof, ideal as a steering servo for crawlers due to its steel and titanium pinions.
Characteristics:
• Ideal for 1/8 and 1/10 On-Road and Off-Road, crawler, etc ..
• Aluminum box
• Waterproof
• Superior precision
• NMB dual main bearings
• 25T output pinion teeth
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
Control system: pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.20 sec/60 degrees at no load
Operating speed (7.4v): 0.19 sec/60 degrees at no load
Operating speed (8.4v): 0.18 sec/60 degrees at no load
Stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
Stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
Stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
Potentiometer drive: direct drive
Dimensions: 40.7×20.5×38.6 mm /1.60×0.81×1.52in
Weight: 82.5g (2.91 oz)
Cconnector wire length: jr 360 mm
