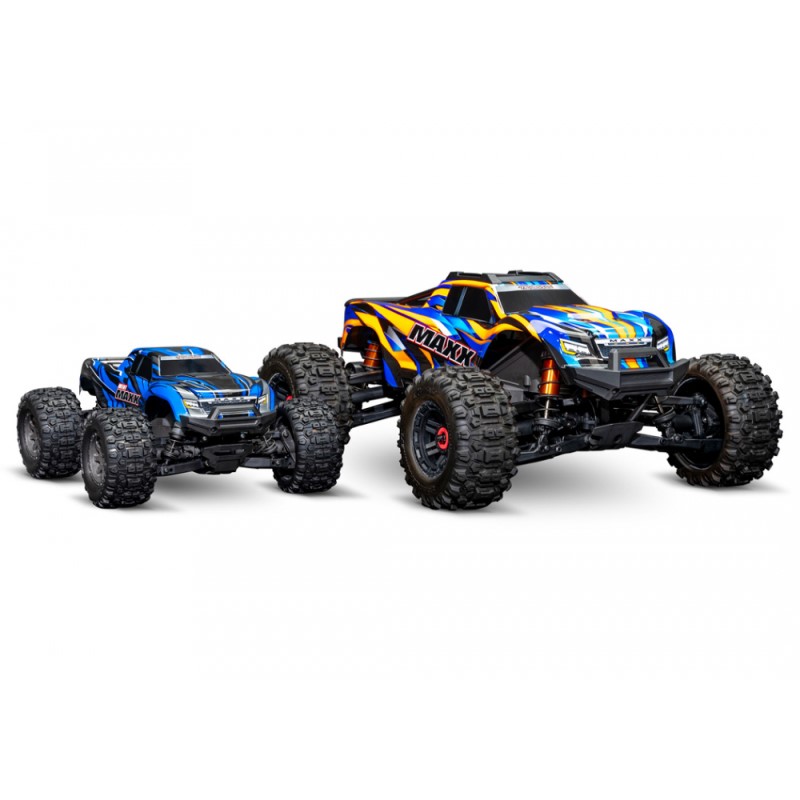

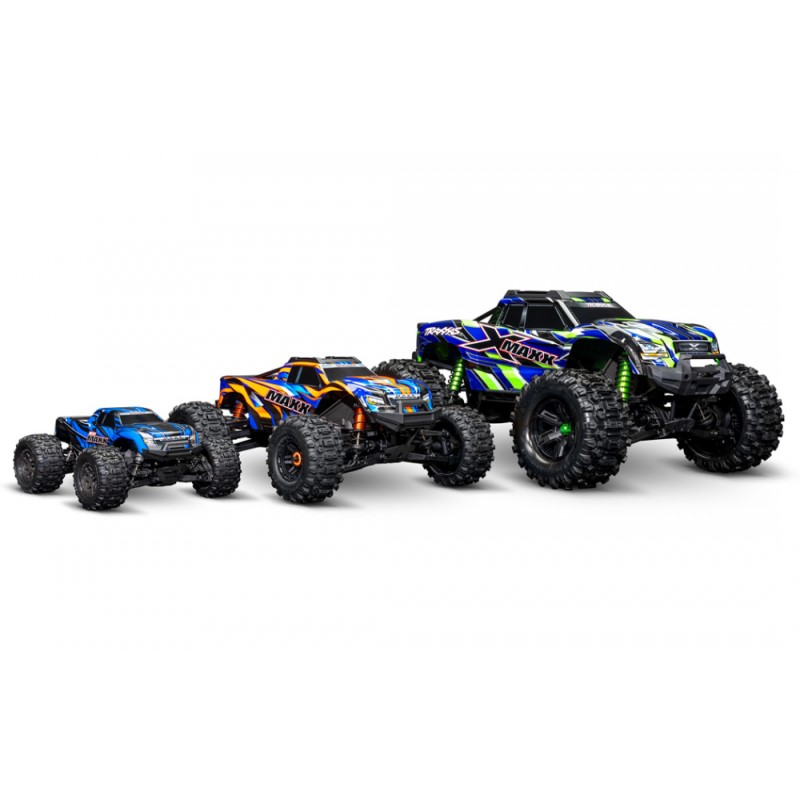

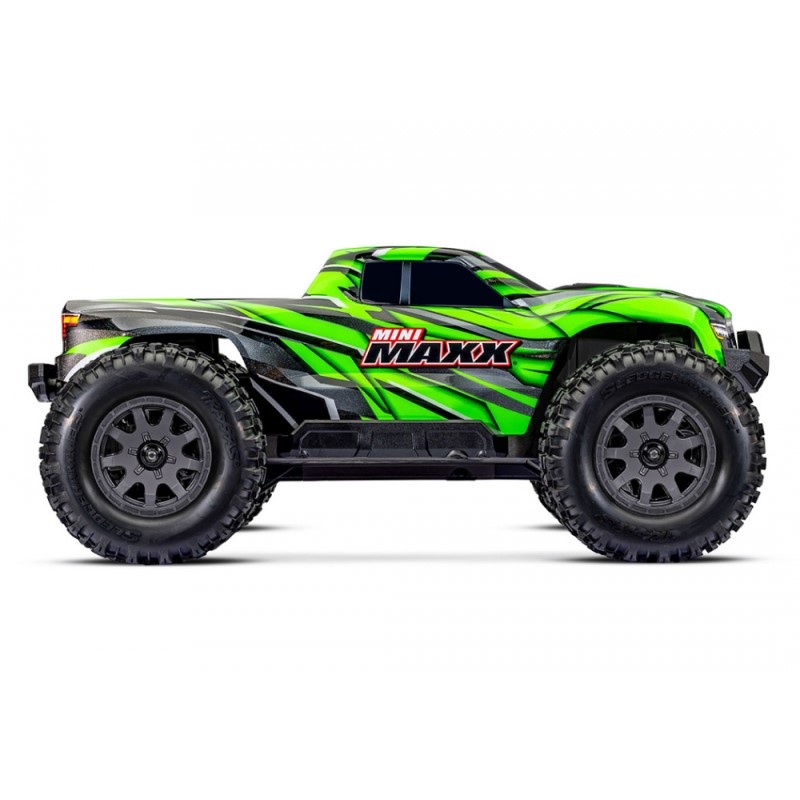

A New Way to Experience Maxx Fun
Overbuilt and over-the-top, the all-new Mini Maxx® captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx® performance. Mini Maxx is the perfect, take-anywhere size, delivering 48+ kph brushless speed and legendary Maxx toughness that slides easily into a backpack.
Maxx Performance
Mini Maxx does what the others can’t, in a fast, fun, and compact form that’s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It’s a whole new way to experience Maxx-level fun in a powerful machine that continues the Maxx legacy for speed and absolute toughness.

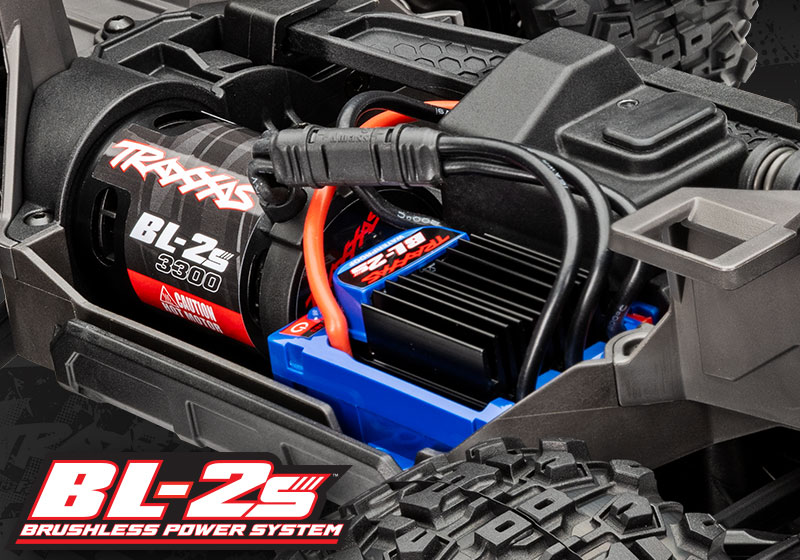

1/10 Scale Power System
The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Maxx, BL-2s power punches well above its weight for lightning-quick acceleration and 48+ kph top speed.

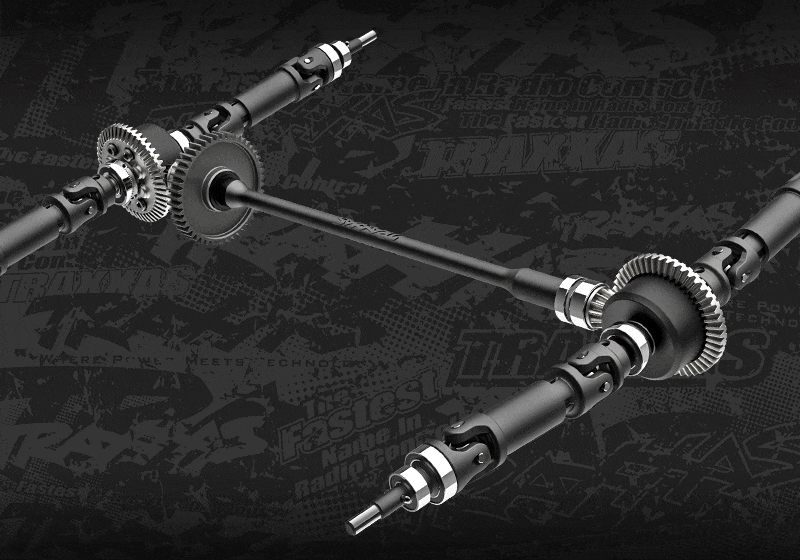

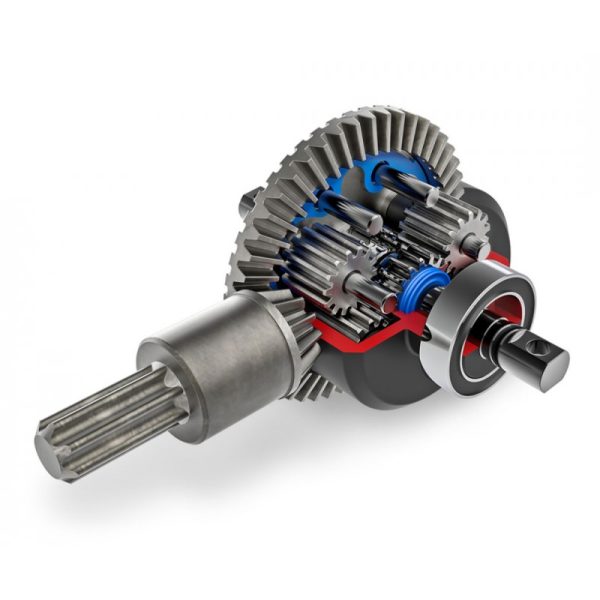

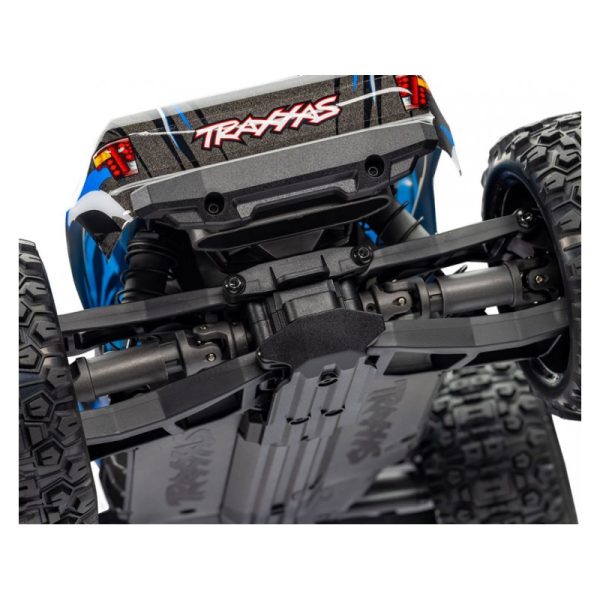

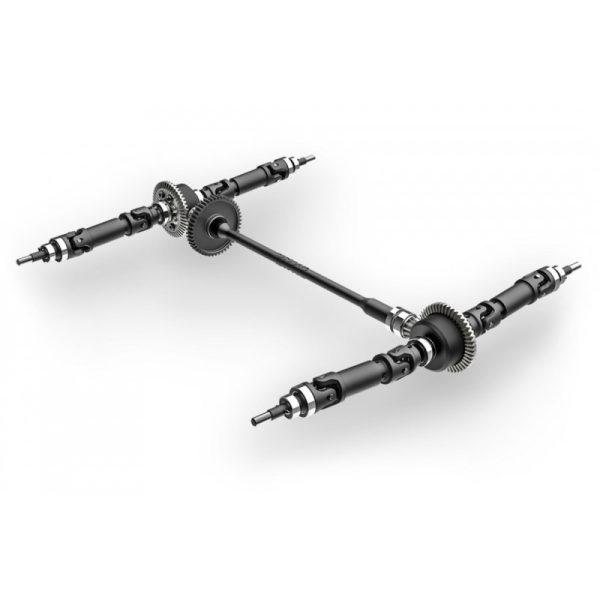

1/10 Scale 4X4 Driveline

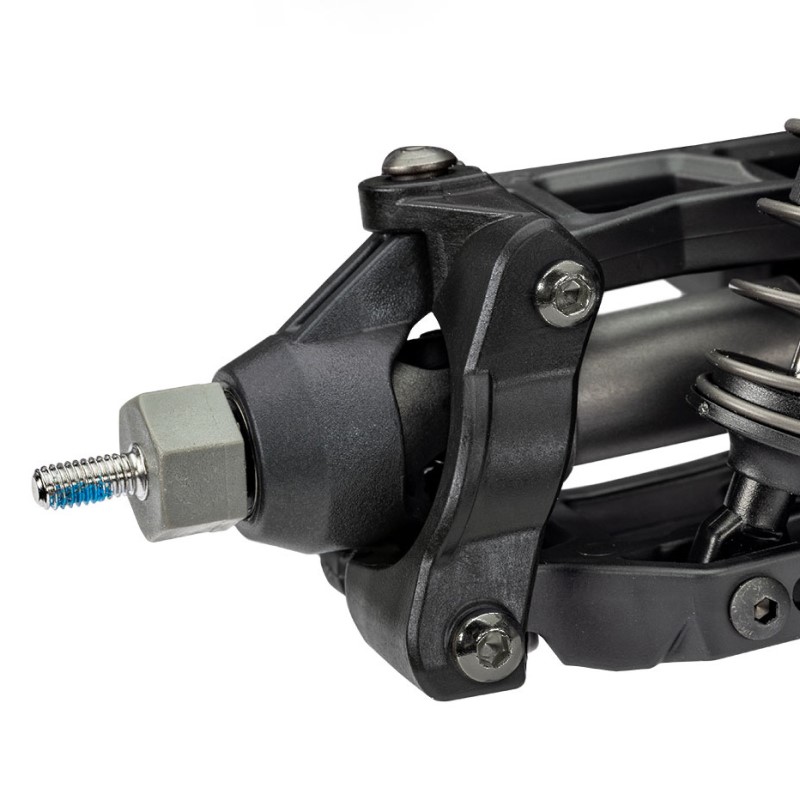

Mini Maxx is engineered to a higher standard with 1/10 scale 4X4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.

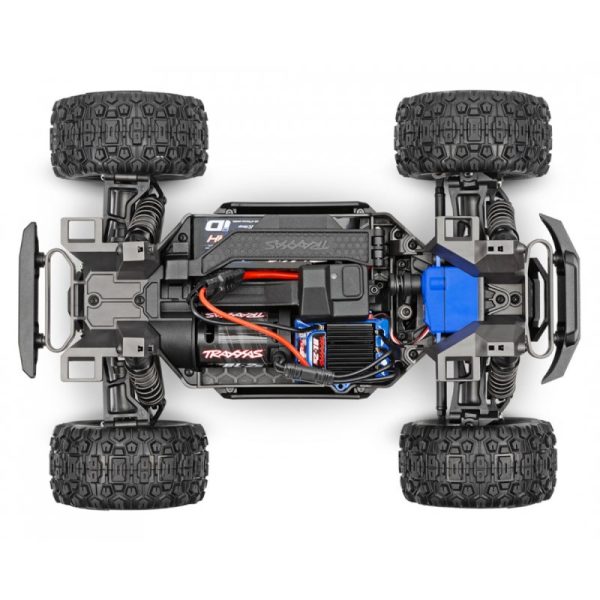

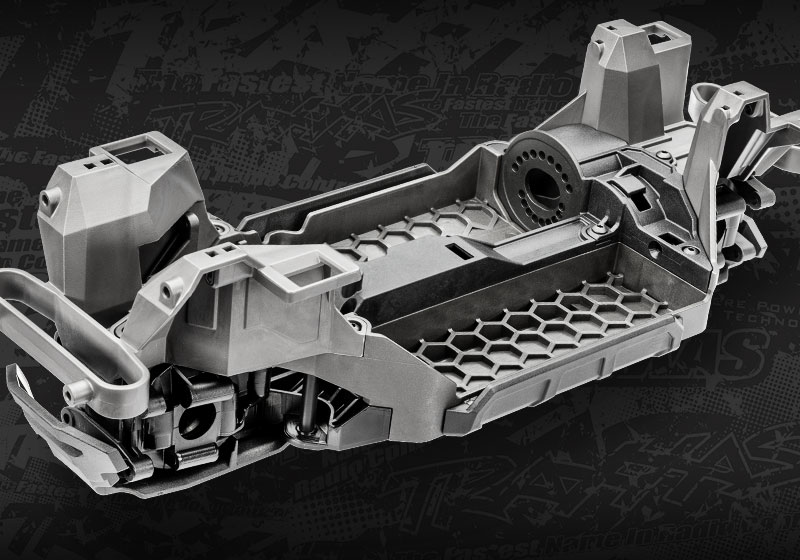

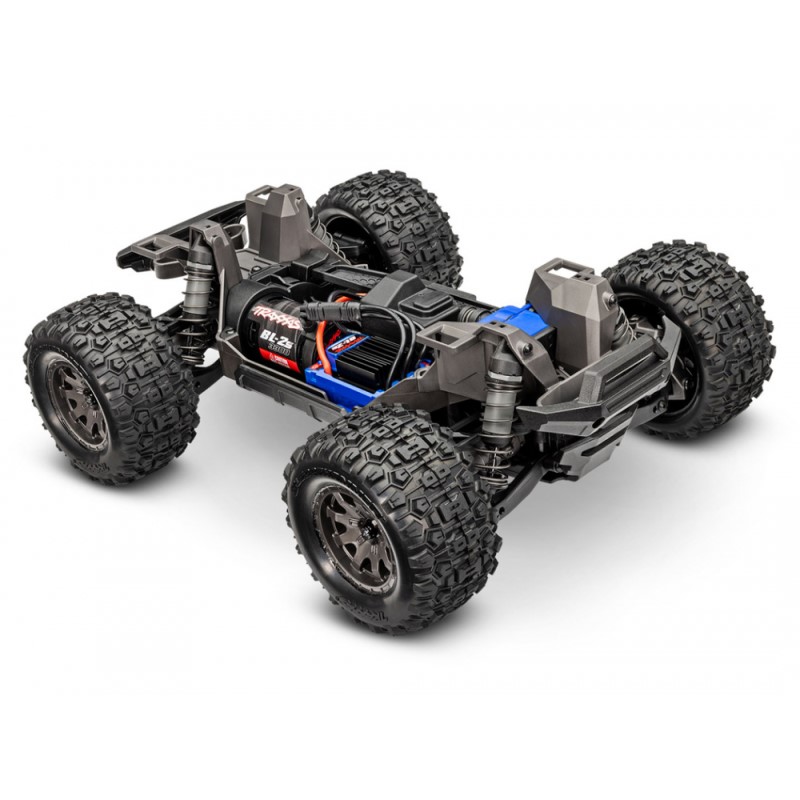

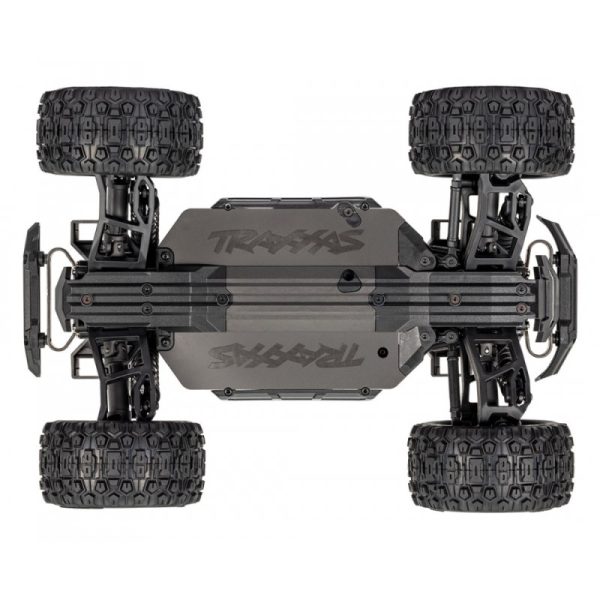

Maxx Chassis Technology

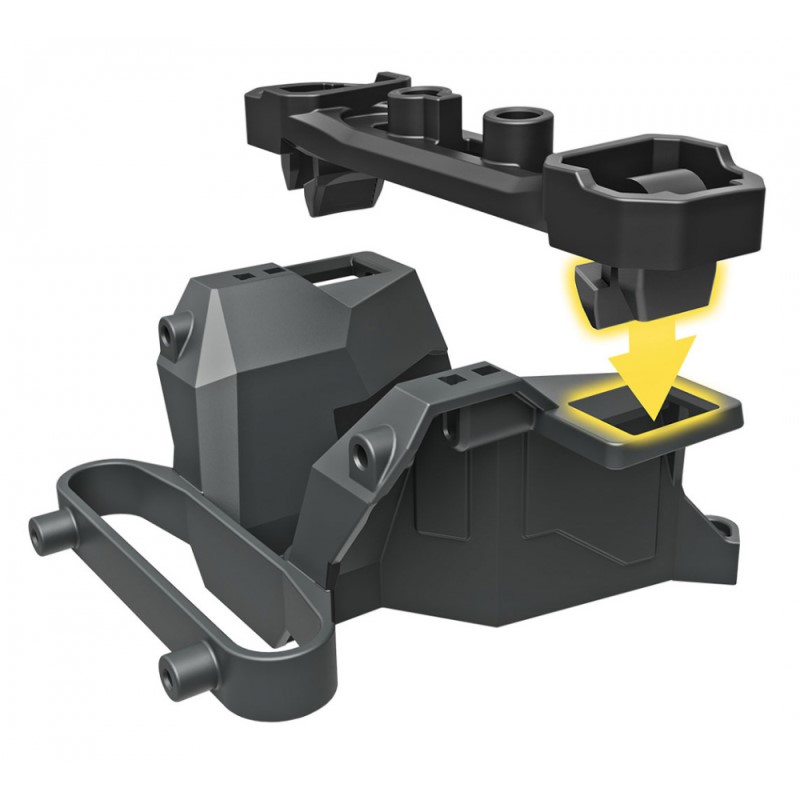

Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength, and Mini Maxx packs it all up in a supremely compact design.

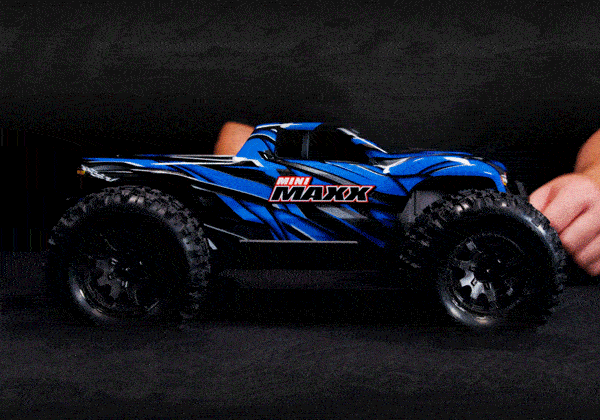

Clipless Body
Mini Maxx’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.

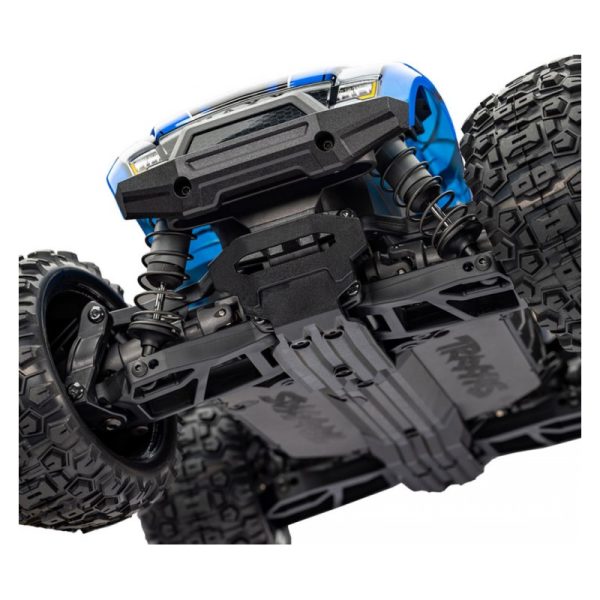

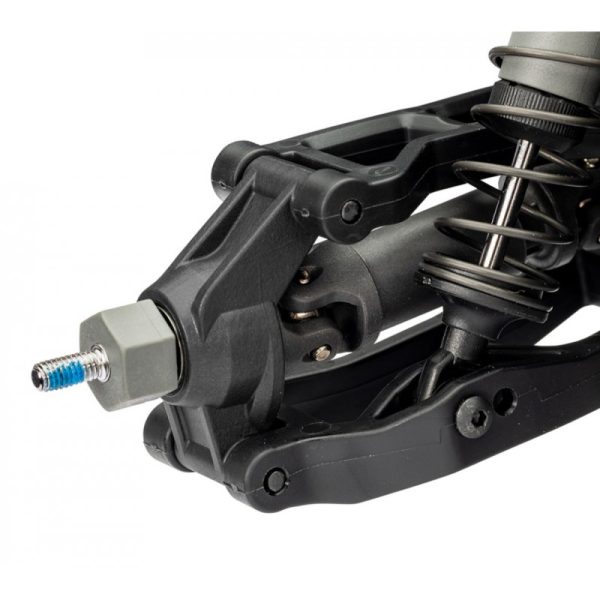

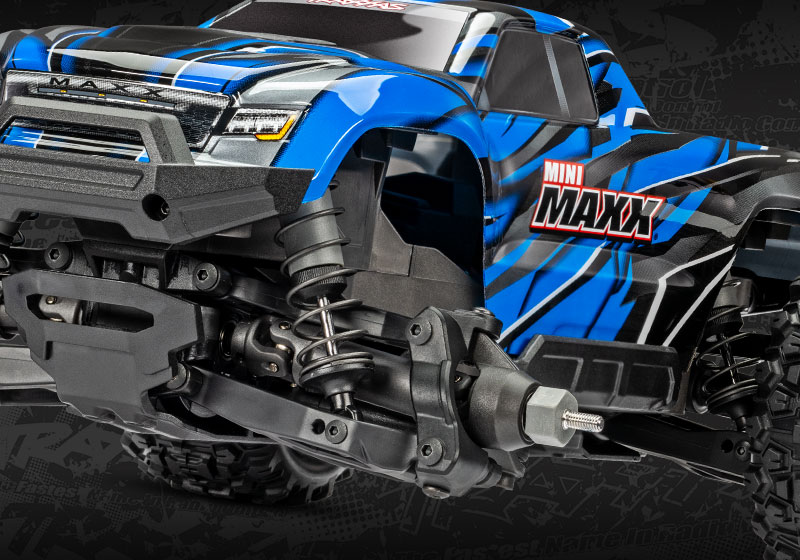

Long-Travel Suspension
1/10 scale Ultra Shocks™ and a long-travel independent suspension deliver WideMaxx® handling and performance in a compact package. Mini Maxx’s beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.
Specs:
Length: 345mm
Width: 253mm
Ground Clearance: 27mm
Weight: 1.64kg
Height: 137mm
Wheelbase: 220mm
Shock Length: 88mm
Tire Diameter: 100mm
Wheel Diameter: 66mm (2.6″)
Speed Control: BL-2s brushless ESC
Motor (electric): BL-2s sensorless brushless (3300 Kv)
Transmission: Direct-drive
Overall Drive Ratio: 9.20:1
Differential Type: Planetary, steel gear
Gear Pitch: 32
Chassis Structure/Material: Composite modular tub
Brake Type: Electronic
Drive System:Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: 2.6″ wheels with pre-glued Sledgehammer® tires
Radio System: TQ™ 2.4 GHz (2-channel)
Servo: Waterproof high-torque 2056
Top Speed: 48+ kph
Skill Level: 1
Battery Tray: L113xW41xH22mm
Required Batteries: 4 “AA” (transmitter)
What’s In The Box:
Mini Maxx Ready-To-Race monster truck
BL-2s Brushless Power System
3500 mAh 2-cell LiPo battery
2-amp USB-C charger
Quick Start Guide
TQ 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
Charging Accessories: Power adapter 2912 and power cable 2916 recommended for peak charging performance.
