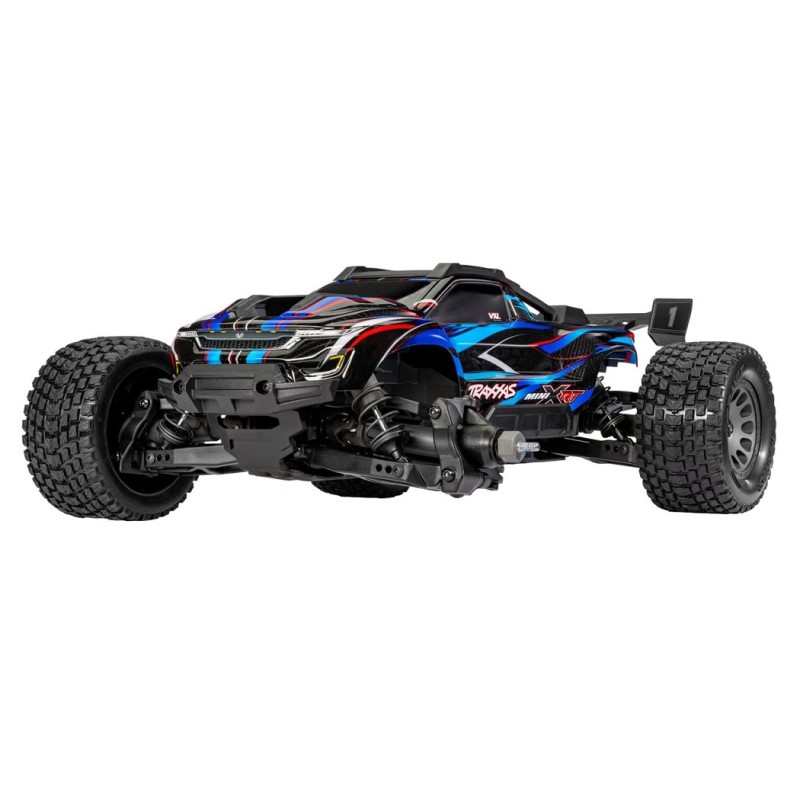

Traxxas 108076-1 – Mini XRT® 3s Brushless Mini Monster Race Truck
Extreme 3s Performance. Compact Size.

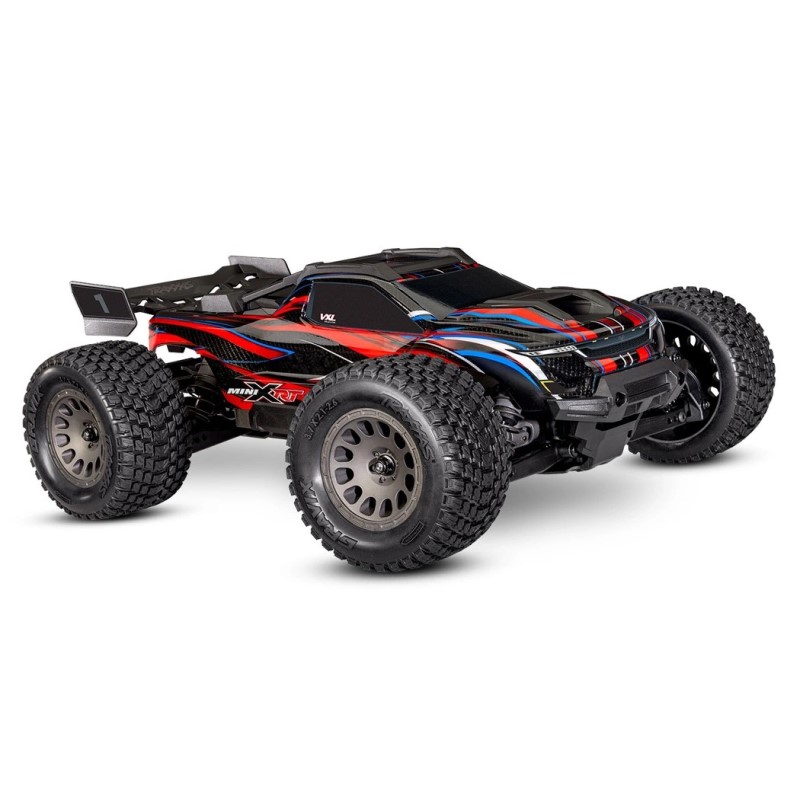

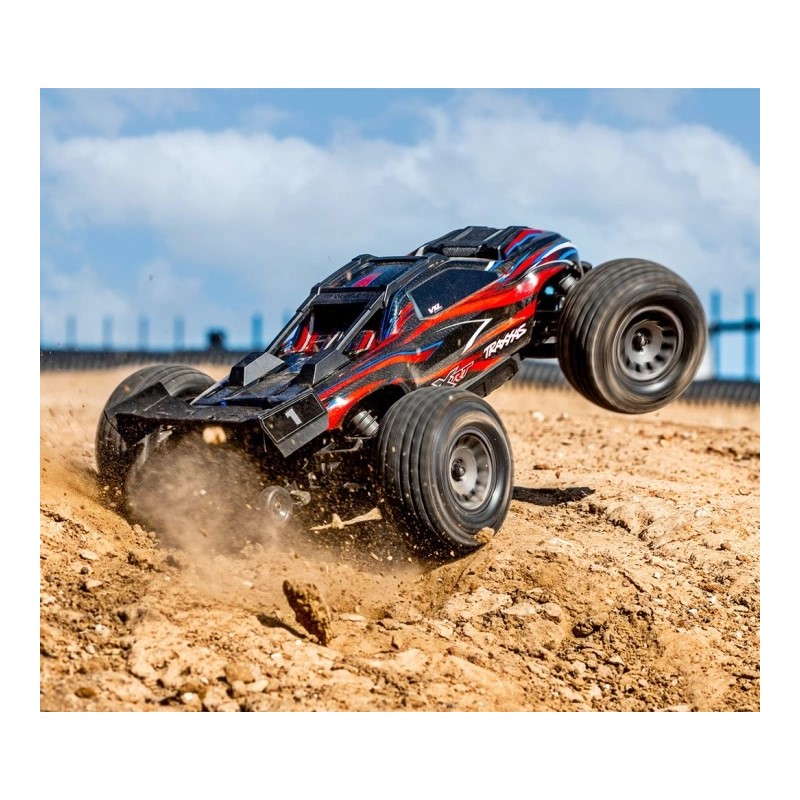

Mini XRT® is a true rocket with full 1/10 scale Velineon® 3s brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 88+ kph speed and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.
Bred For Performance

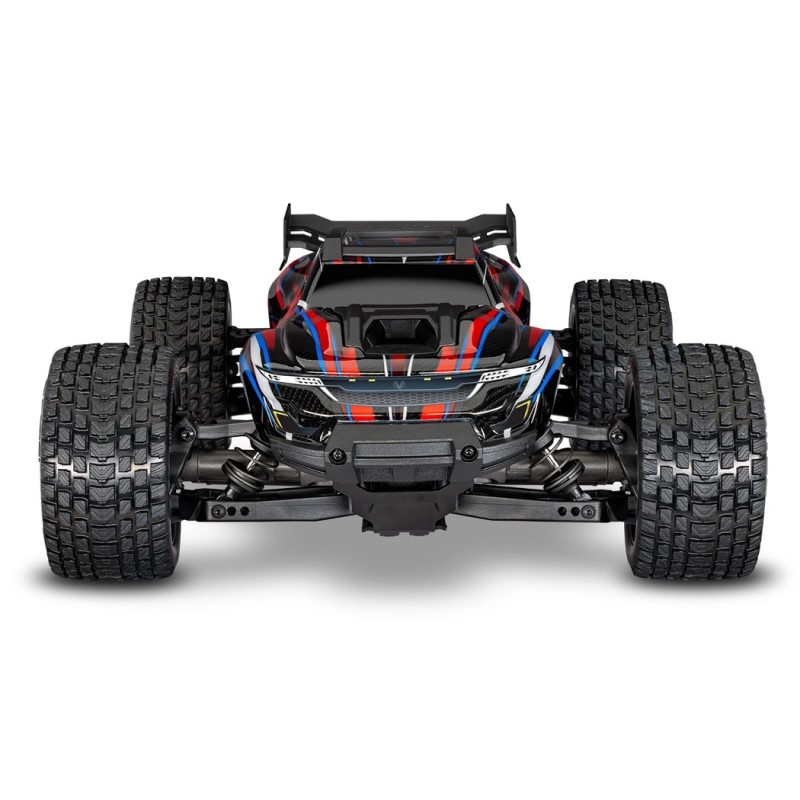

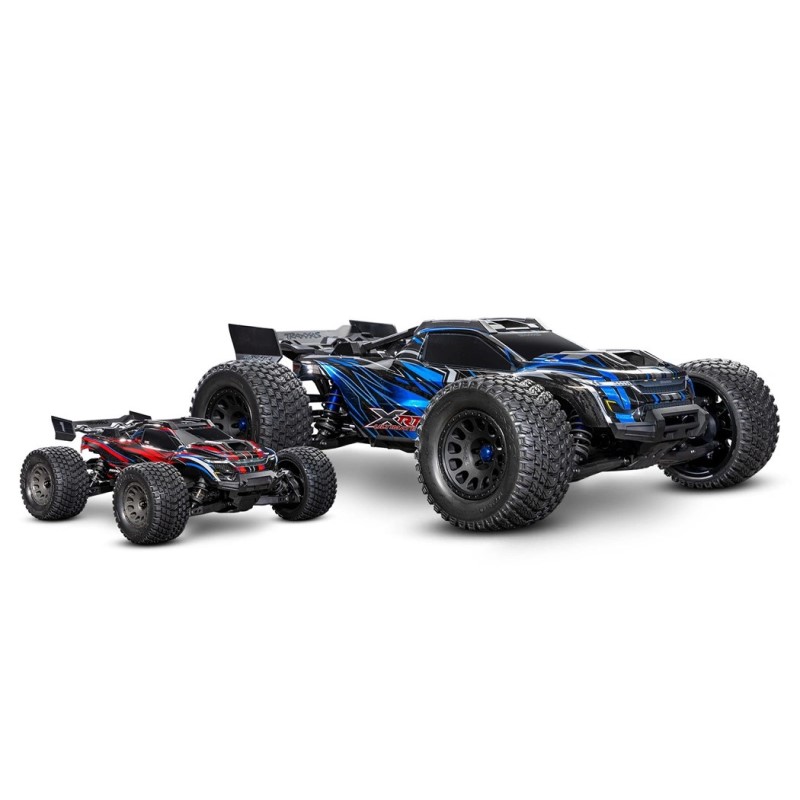

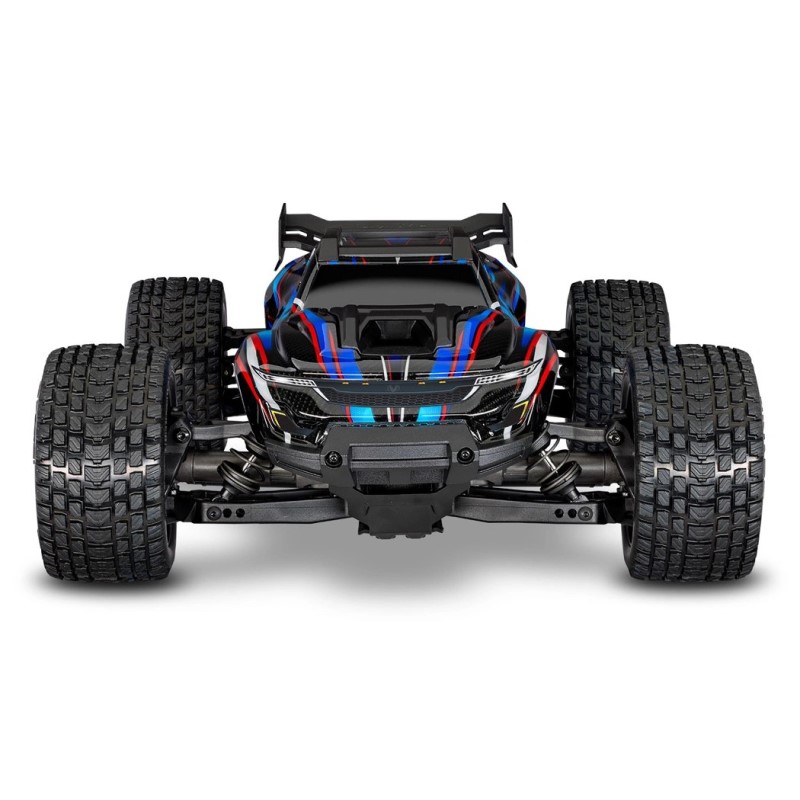

Like its X-series™ counterpart, Mini XRT was engineered with maximum focus on speed, handling, and performance. A low, ultra-wide stance delivers supreme confidence and control as Mini XRT muscles its way to 88 kph and beyond. It’s a whole new way to experience big-scale fun and toughness in a backpack-friendly size.
1/10 Scale VXL-3s Brushless Power

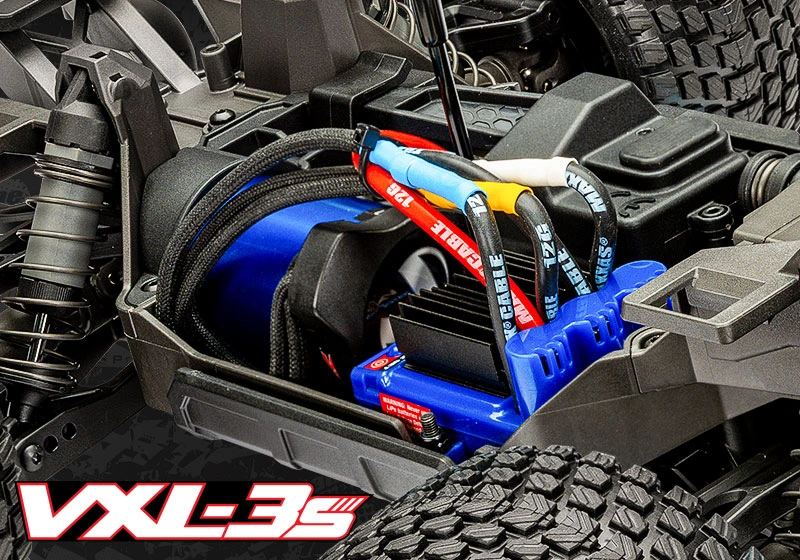

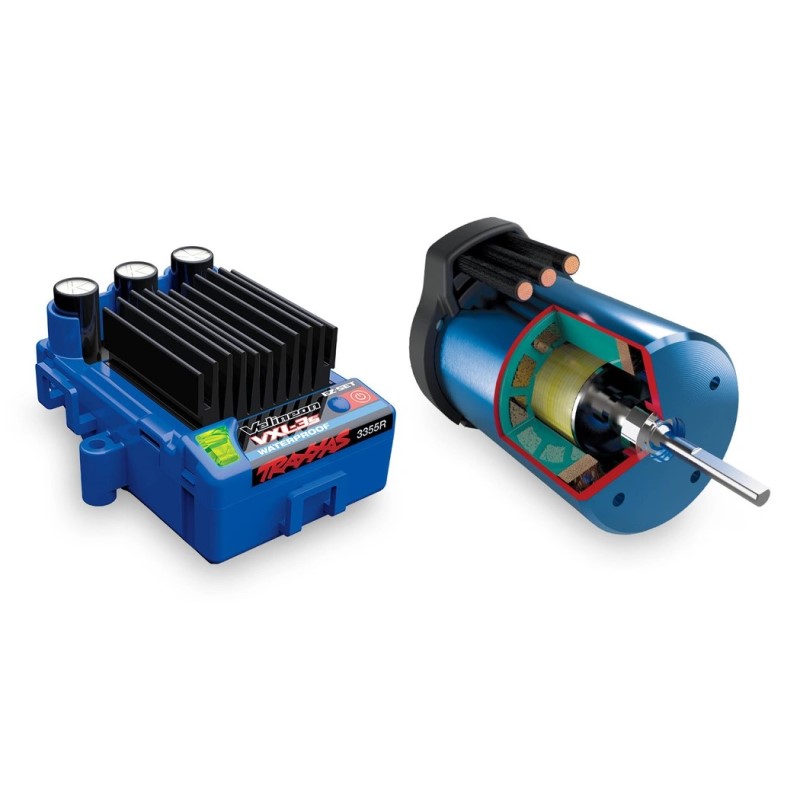

The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 88+ kph speed, and wheel-standing power at any rpm.

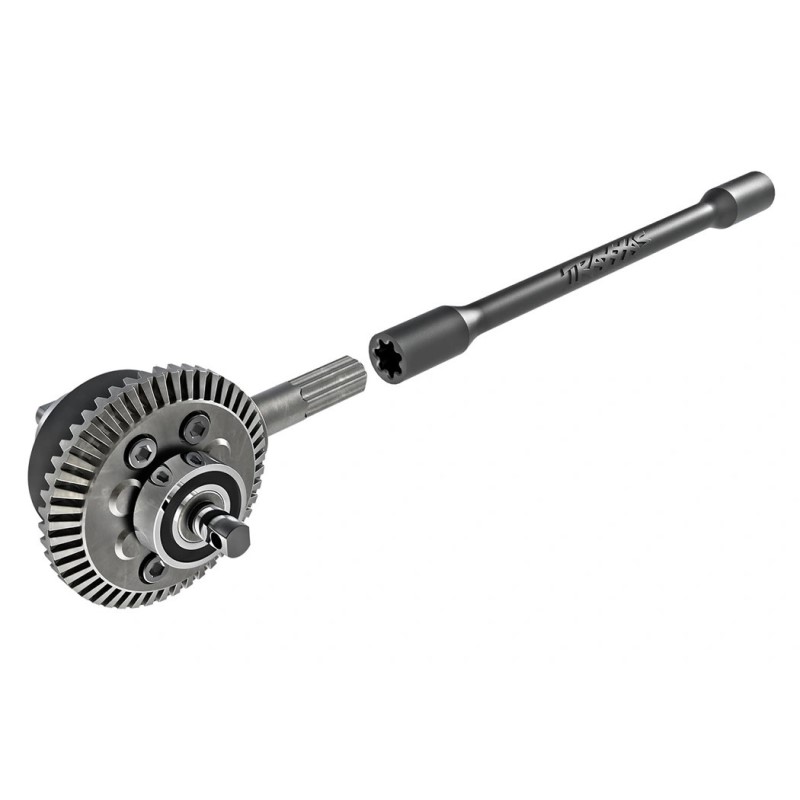

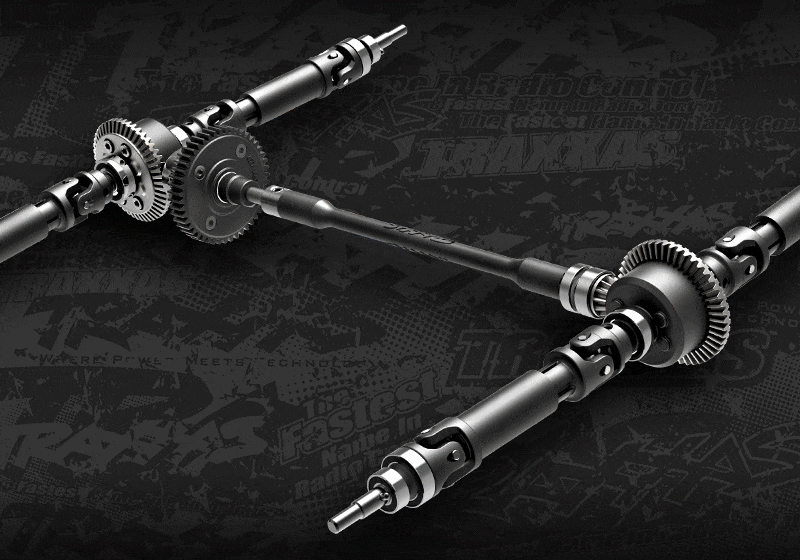

1/10 Scale 4X4 Driveline

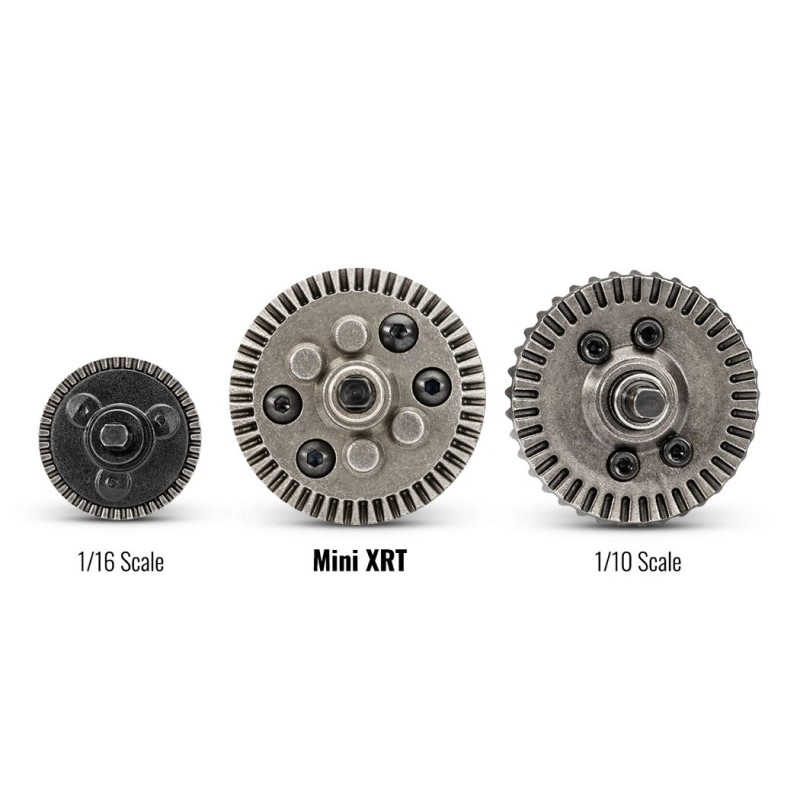

Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.

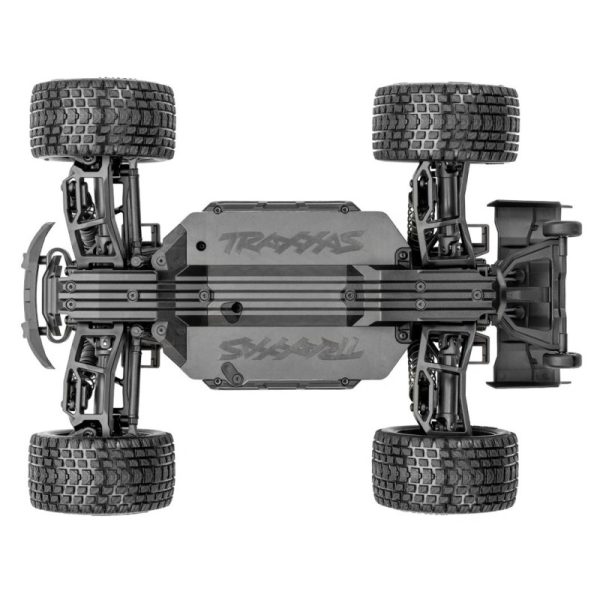

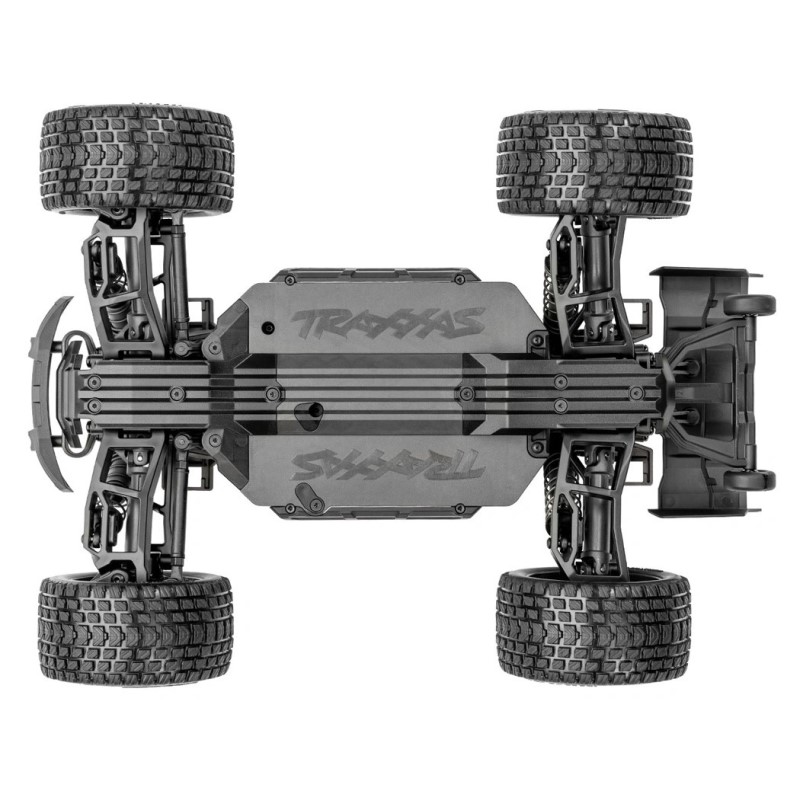

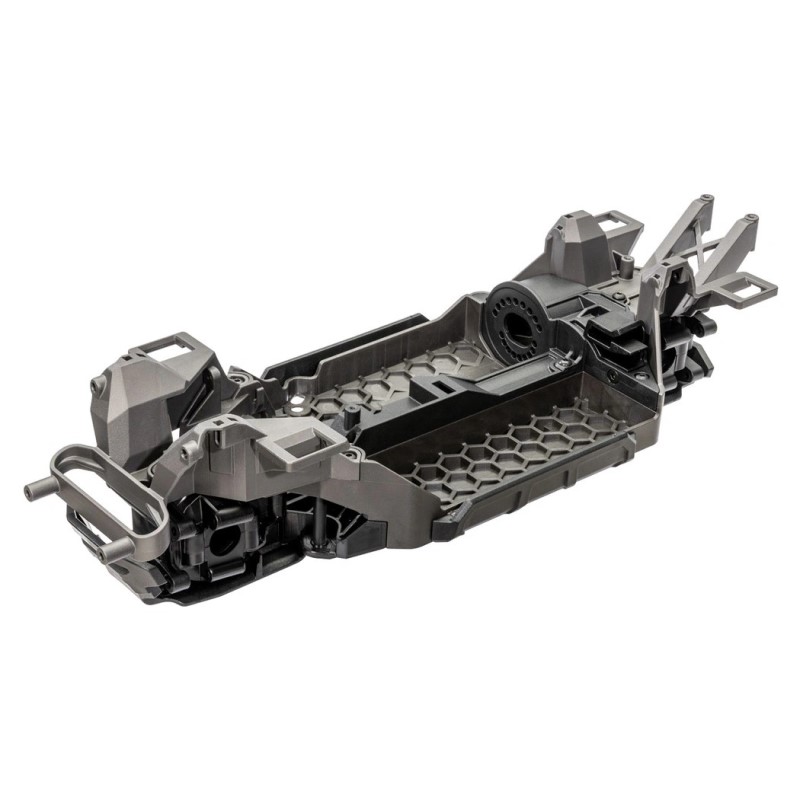

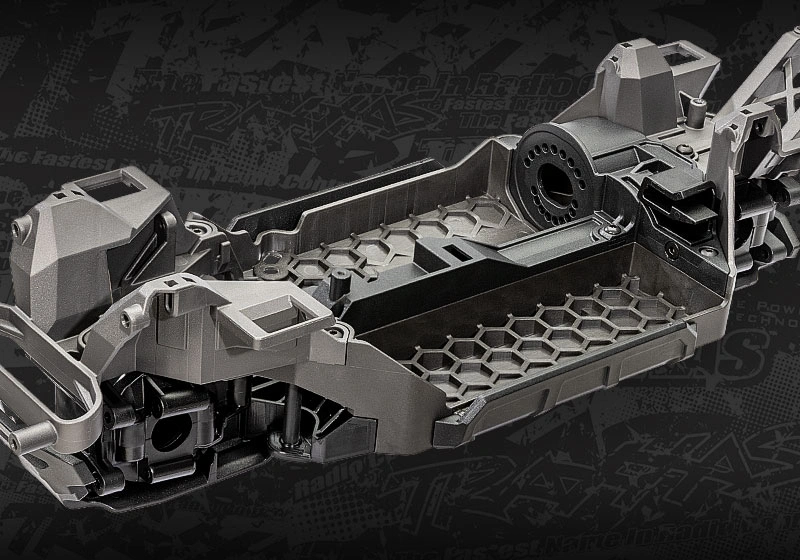

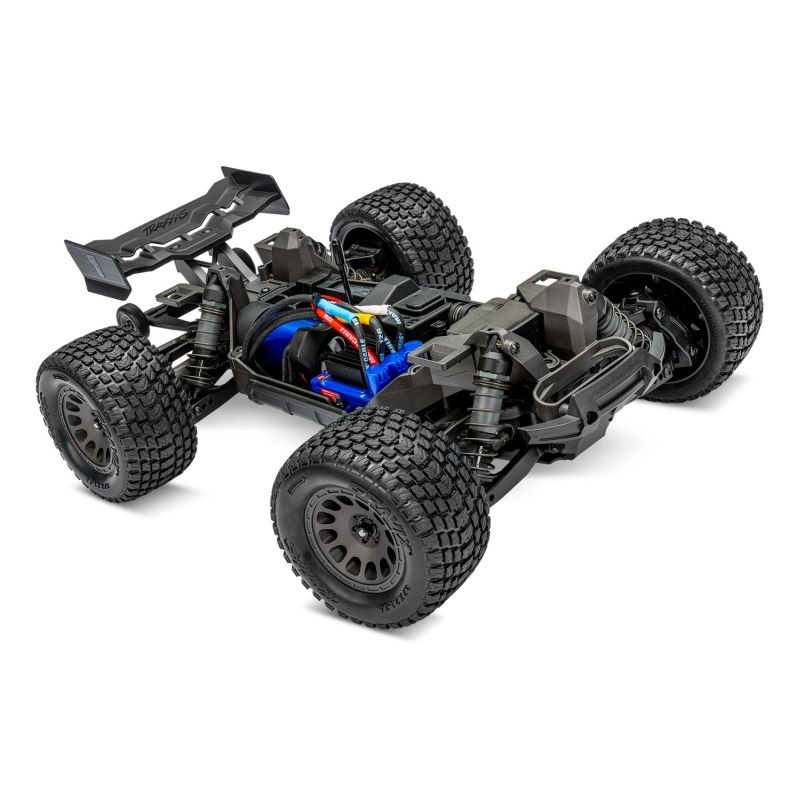

Maxx Chassis Technology

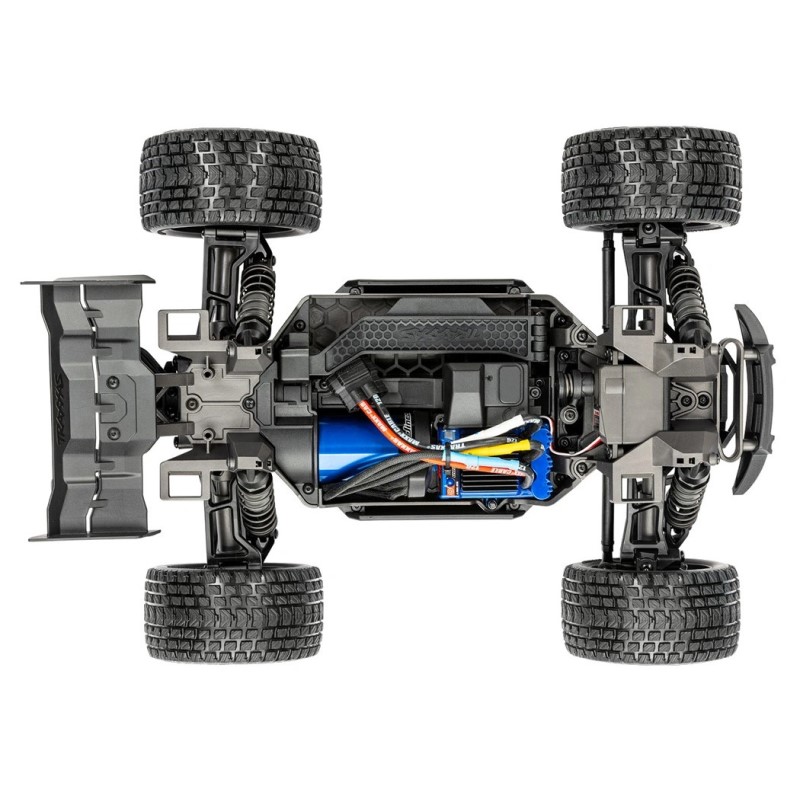

Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx®. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.

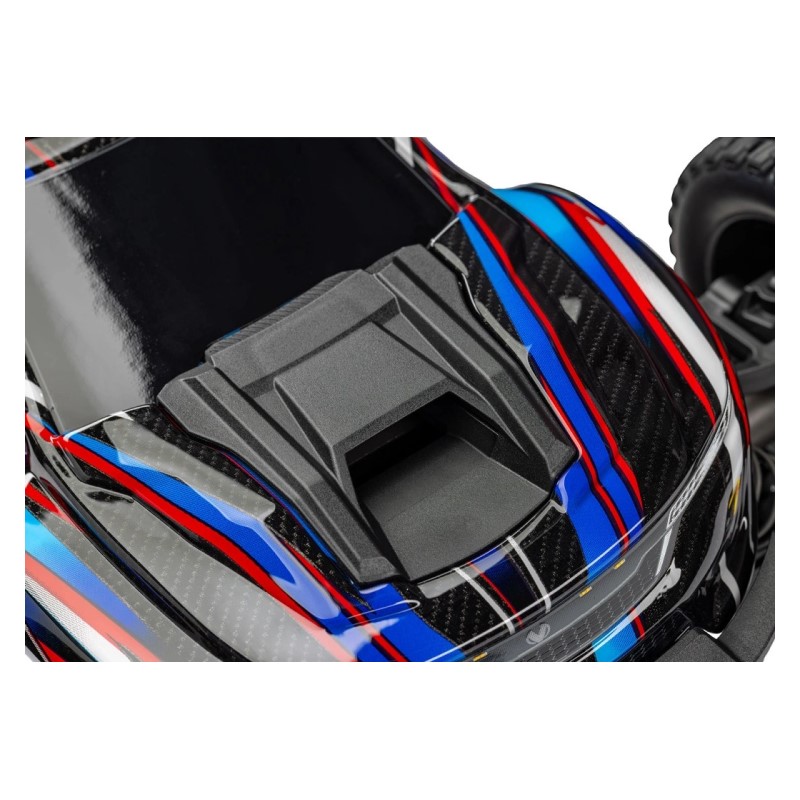

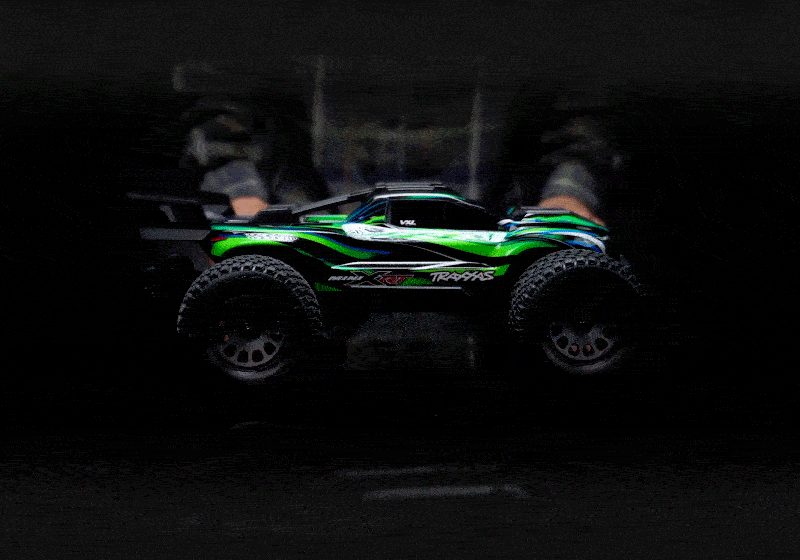

Clipless Body
Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.

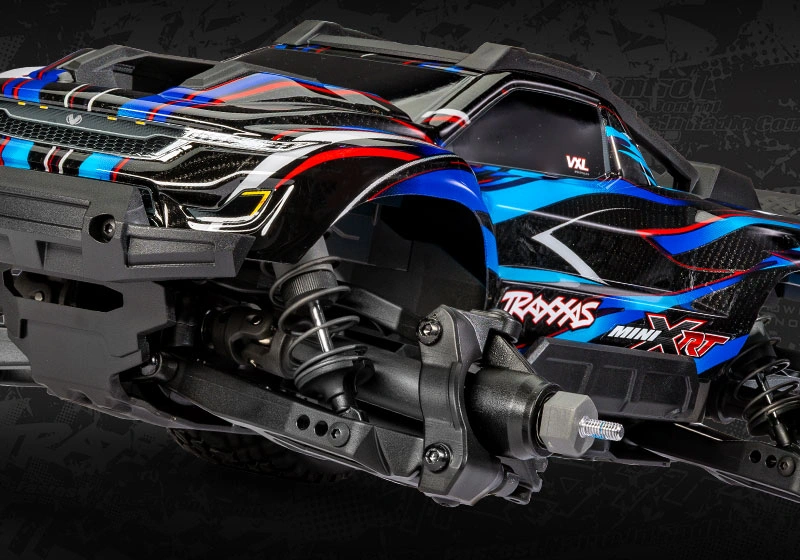

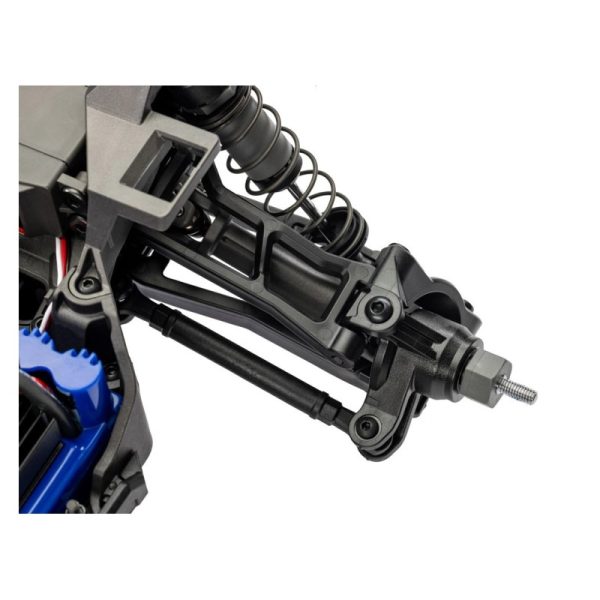

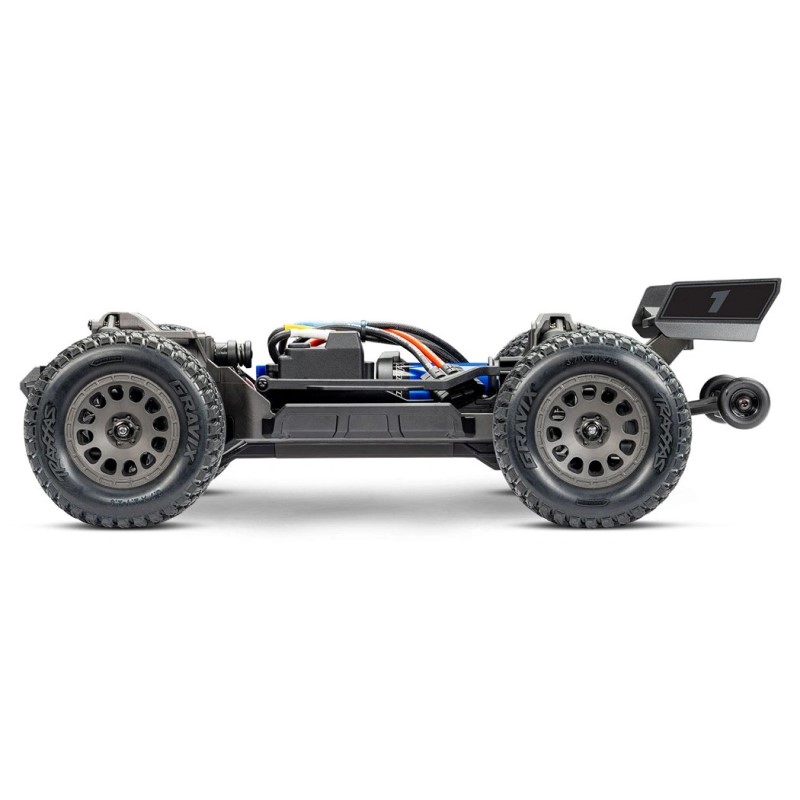

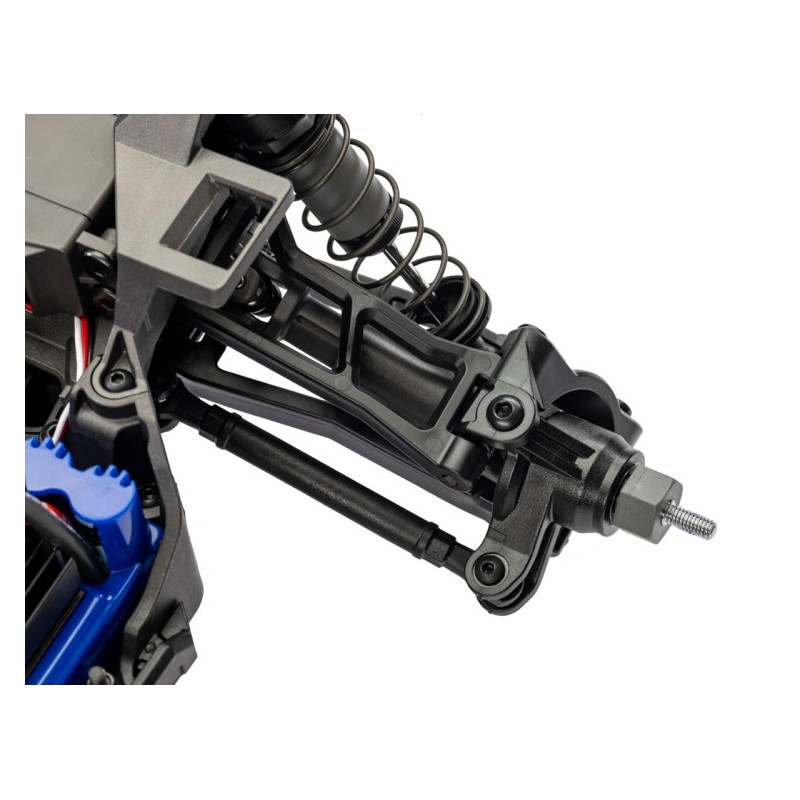

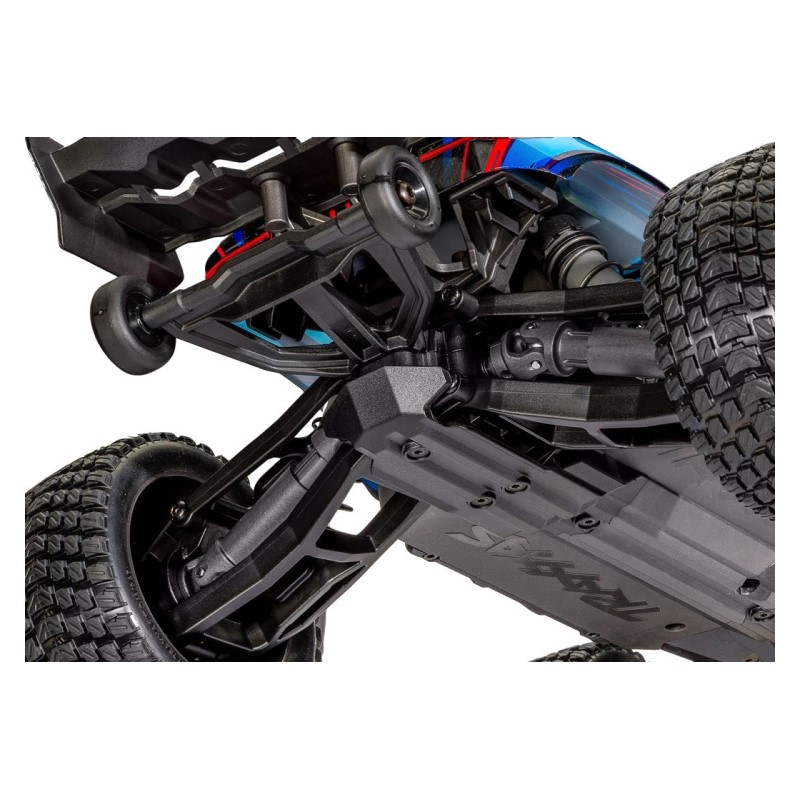

WideMaxx Suspension

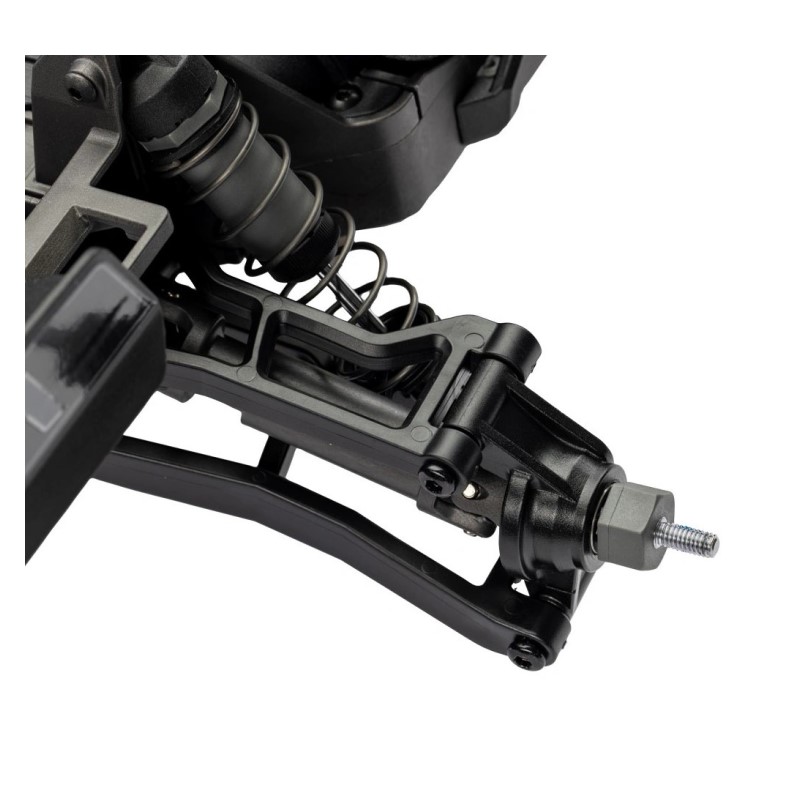

Mini XRT relies on proven WideMaxx® suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.
Truck Specs:
Length: 376mm
Width: 279mm
Ground Clearance: 27mm
Weight: 1.81kg
Height: 127mm
Wheelbase: 220mm
Shock Length: 88mm
Tire Diameter: 94mm
Wheel Diameter: 2.1″ (53mm) outer, 2.6″ (66mm) inner
Speed Control: VXL-3s brushless ESC
Motor (electric): Velineon 3500 (3500 Kv)
Transmission: Direct-drive with center differential
Overall Drive Ratio: 7.36:1
Differential Type: Planetary, steel gear
Gear Pitch: 32
Chassis Structure/Material: Composite modular tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank

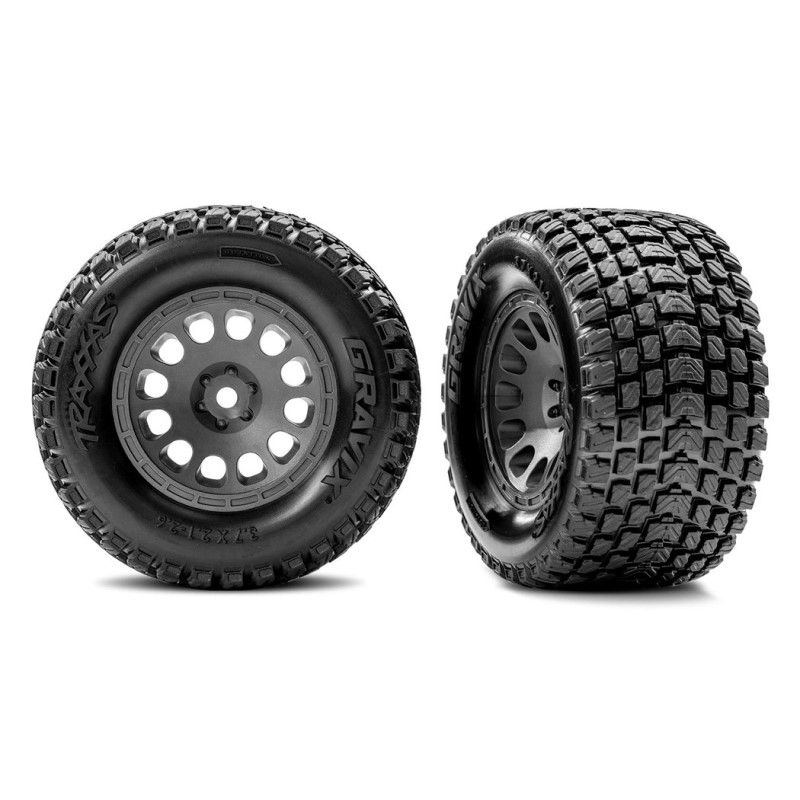

Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
Radio System: TQi 2.4 GHz high output (2-channel) with TSM

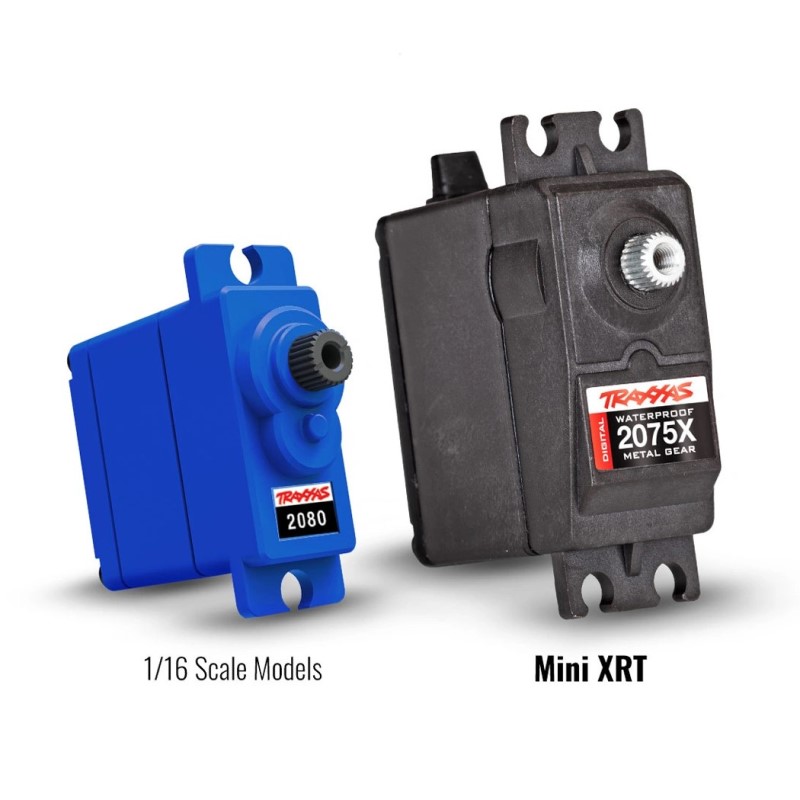

Servo: Waterproof high-torque, metal-gear 2075X
Top Speed: 60+ kph with 2s LiPo & 88+ kph with optional 3s LiPo
Skill Level: 1
Battery Tray: L113 x W41 x H22mm
Required Batteries: 4 “AA” (transmitter)
Motor specs:
Type: Velineon 3500 Kv sensorless brushless
Length: 77mm
Diameter: 36mm
Connector Type: 3.5 mm bullet
ESC Specs:
Input Voltage (cells): 7.4 – 11.1 volts, 2s–3s LiPo
BEC Voltage: 6.0 volt
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan
What’s In The Box:
Mini XRT Ready-To-Race monster truck
Velineon VXL-3s brushless power system

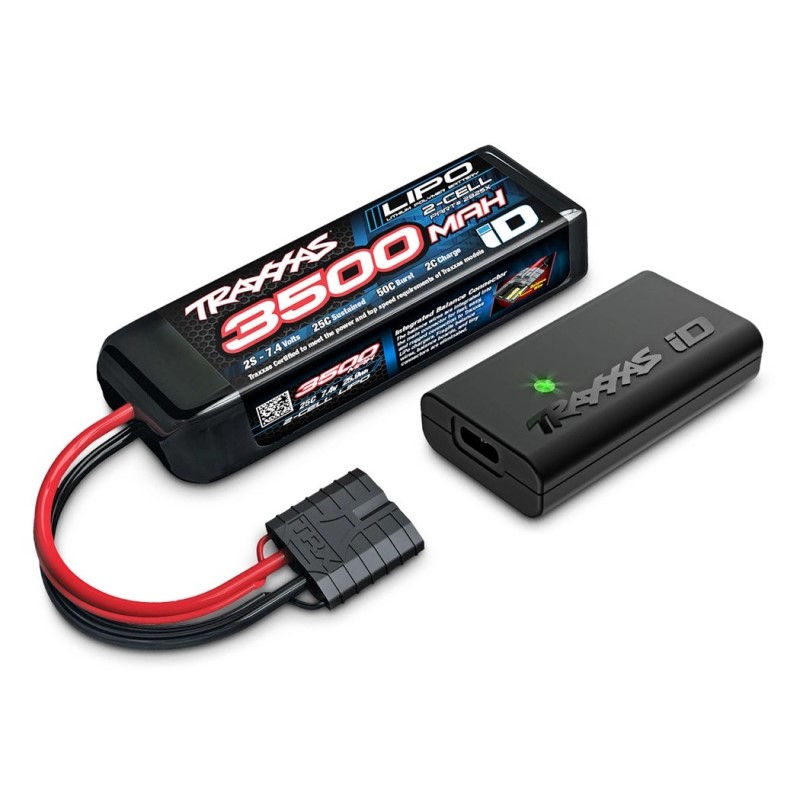

3500 mAh 2-cell LiPo battery
2-amp USB-C charger
Quick Start Guide
TQi 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
AA Alkaline Batteries: Four for the transmitter
Charging Accessories: Power adapter 2912 and power cable 2916 recommended for peak charging performance
