Optimized Weight Distribution
12mm Lower Suspension

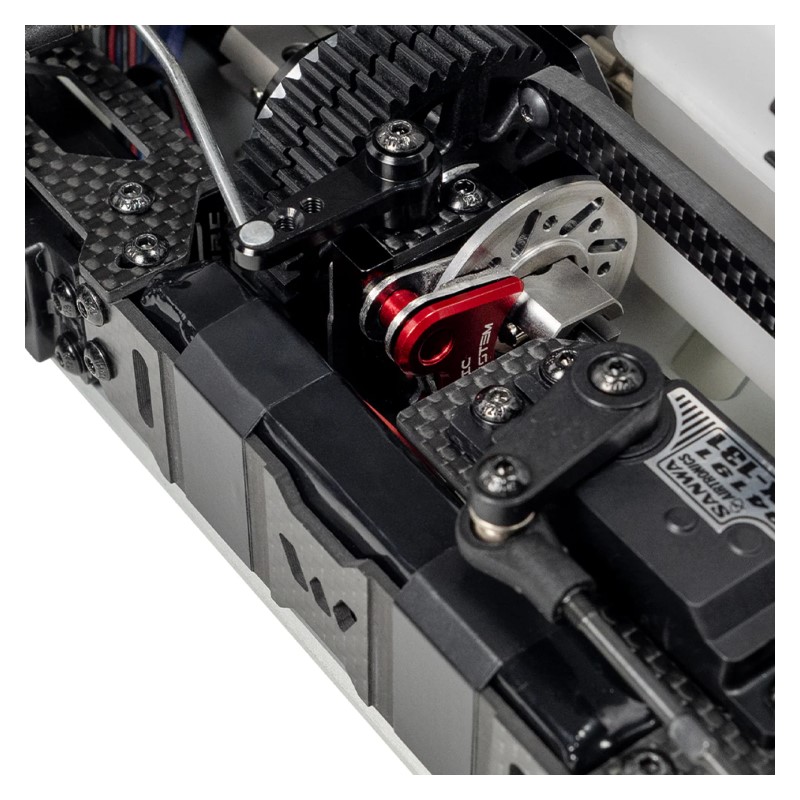

New Brake System
Introduction

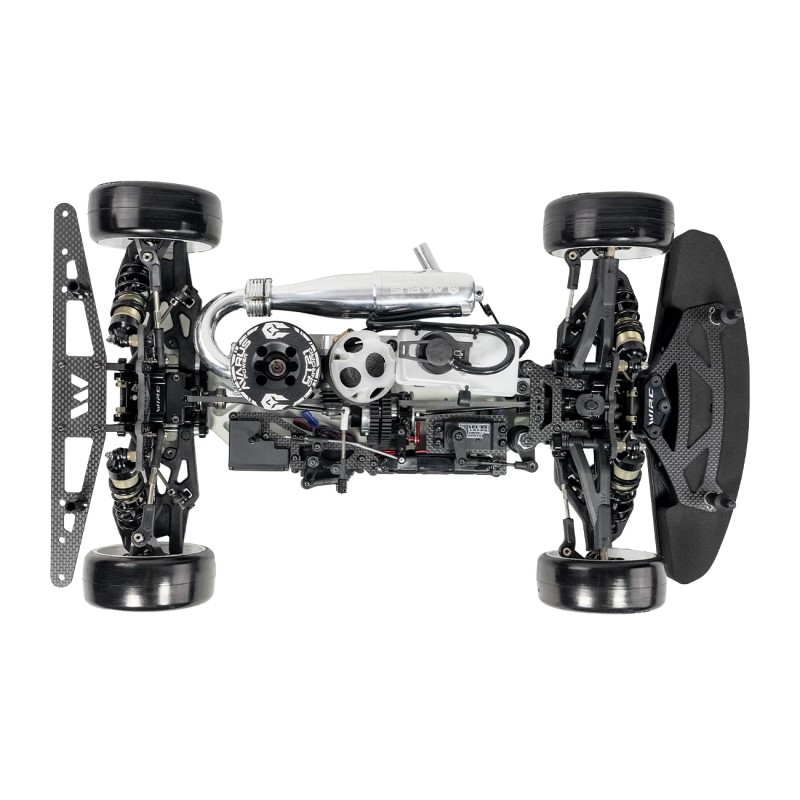

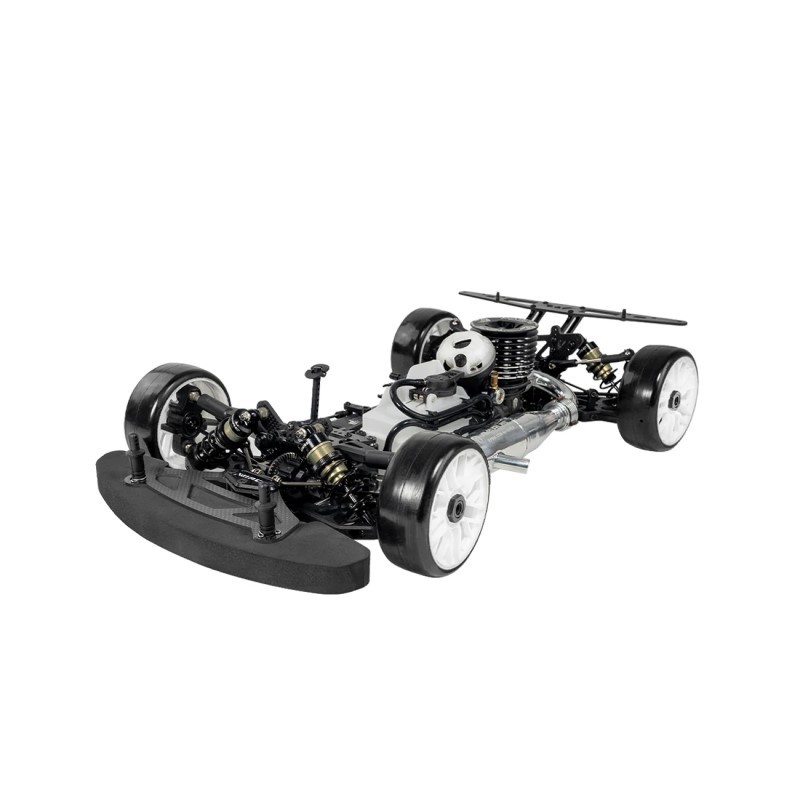

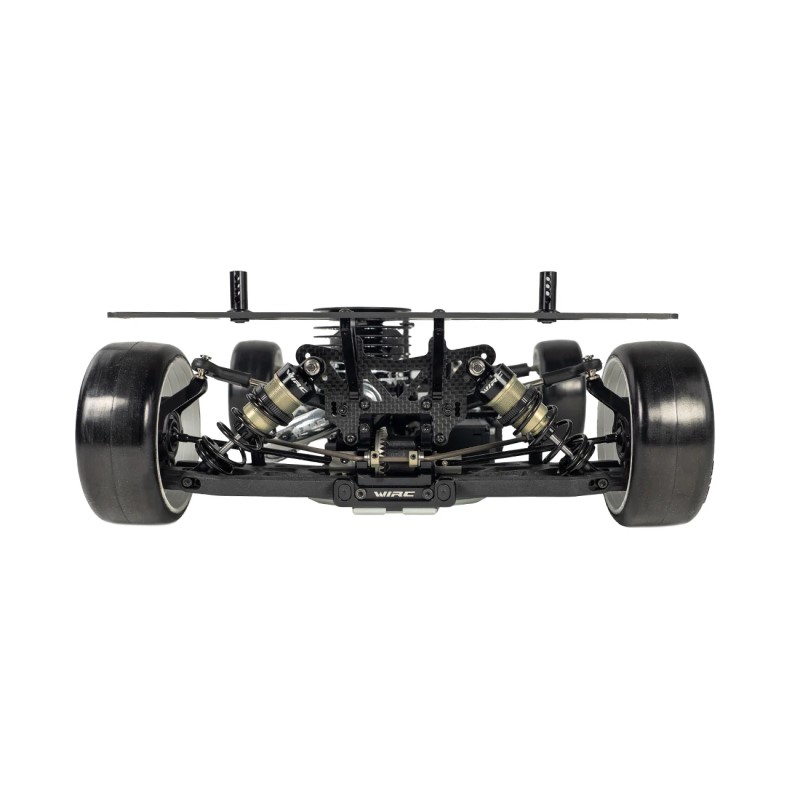

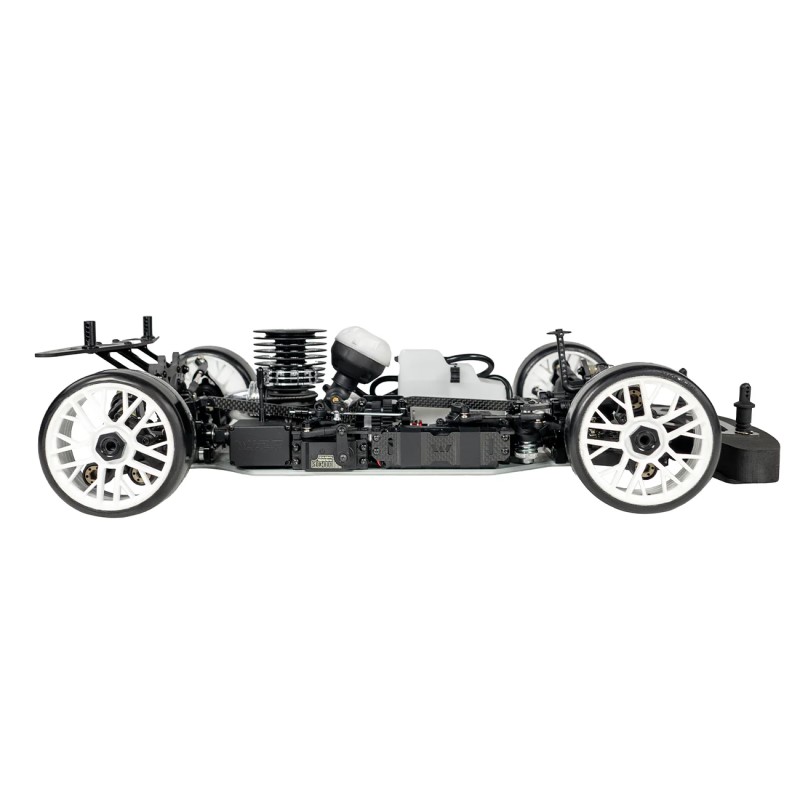

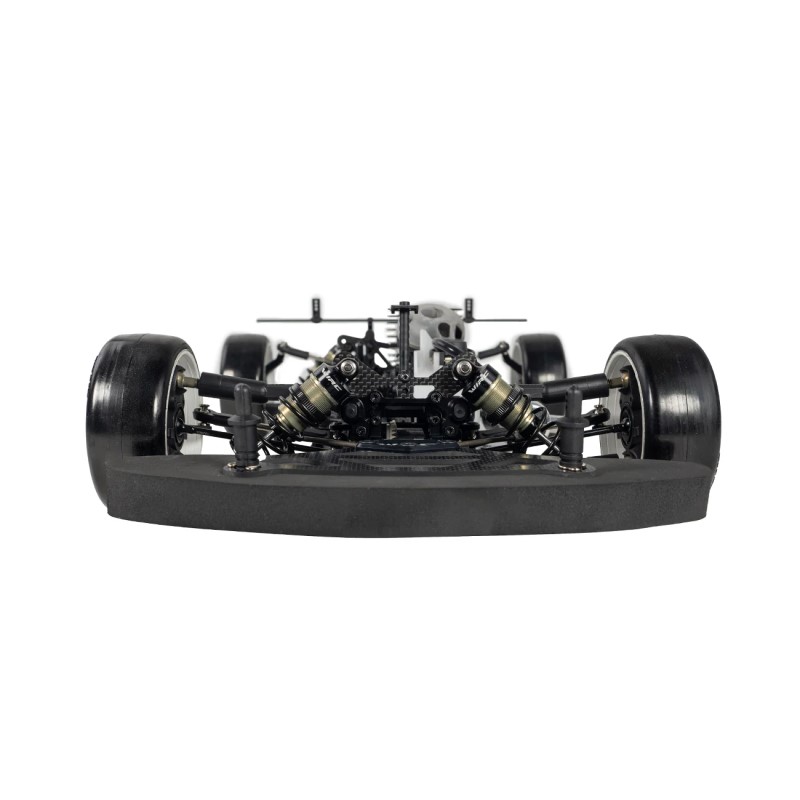

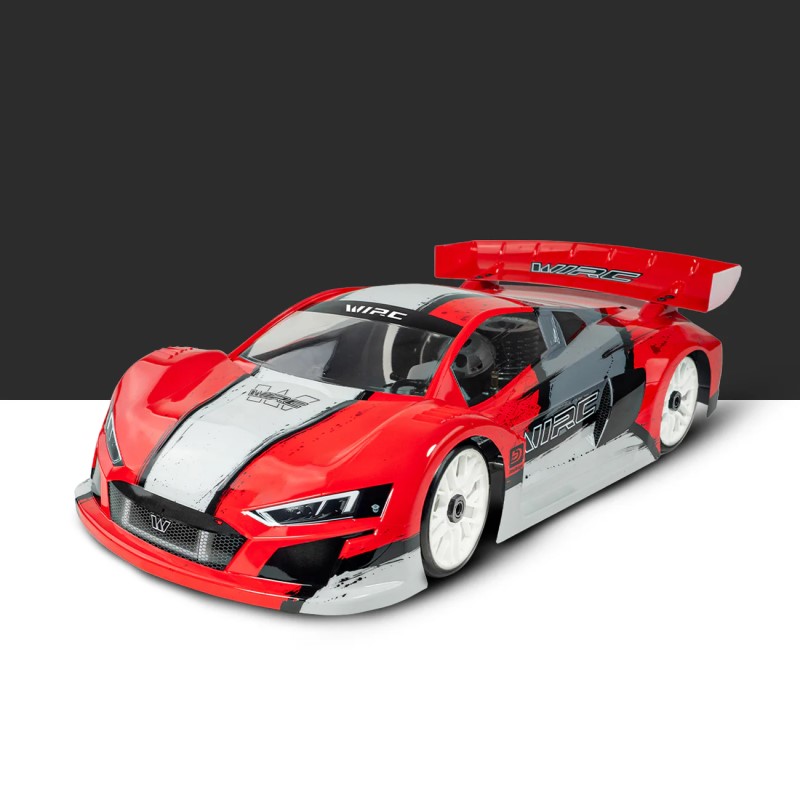

The GT4R-1 scale 1/8 WD GT Nitro Car is engineered for high performance and precision. Featuring a new suspension design, it boasts an 12 mm lower front and rear suspension for enhanced stability. The car includes a redesigned radio plate and optimized weight distribution for superior control. Additionally, the GT4R-1 is equipped with a new braking system, ensuring reliable stopping power on any track. Built for serious racers, this nitro car offers unmatched durability and performance.
TECHNICAL SPECS
Width: 310mm
Weight ready to run: 3300 g
GEAR: 2-speed automatic
Wheelbase: Adjustable 315-320mm
Wheels lock: Lightweight 17 mm 7075 T6 Nut
Chassis: 4.0 mm Swiss 7075 T6 aluminium
Radio Plate: Composite Material
Drivetrain type: Spring steel CVD Drive Shafts
Front Differential: Differential Gear
Rear Differential: Differential Gear

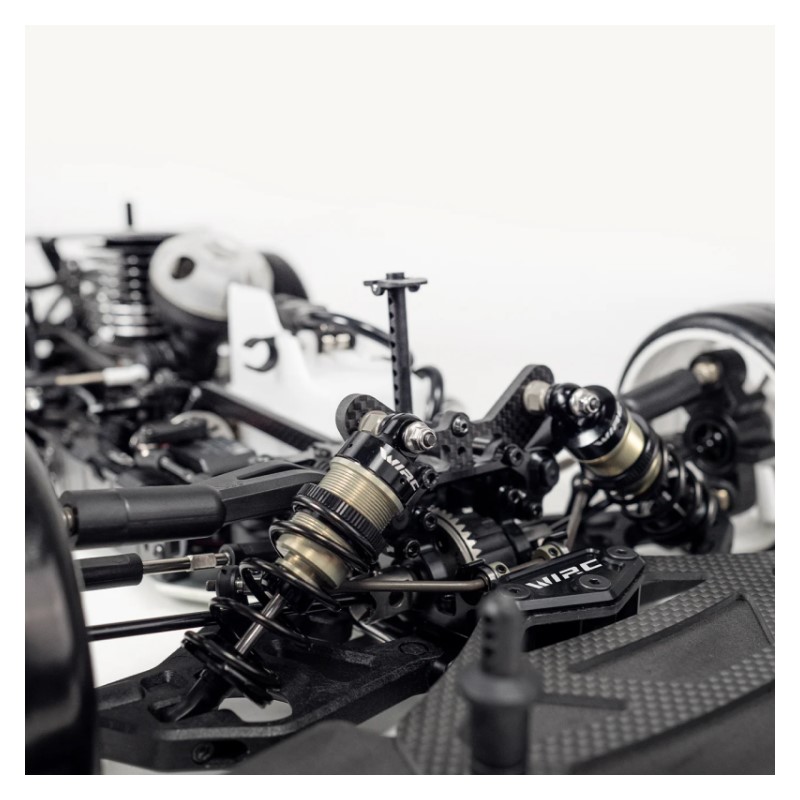

Suspension: Front & rear pivot alu 7075
Ride Height: Adjustable Front & Rear
Camber: Adjustable Front & Rear
Caster: Adjustable Front
Toe: Adjustable Front & Rear
Rollcenter: Adjustable Front & Rear
Ackermann: Adjustable Front
Anti-roll bars: Adjustable Front & Rear
Dampers: 4 hydraulic
Manual: GT4R-1_Instruction_Manual_11_03_25_Compressed
Setup Sheet Blank GT4R-1: GT4R-1_Setup_Sheet_Blank
Additional Items Needed for completion:
Body
Engine and Muffler
Transmitter and Receiver
Low Profile Steering Servo
Throttle/Brake Servo
Receiver Battery
Wheels – Tyres – Inserts
Fuel
Glow Plug Igniter
Starter
