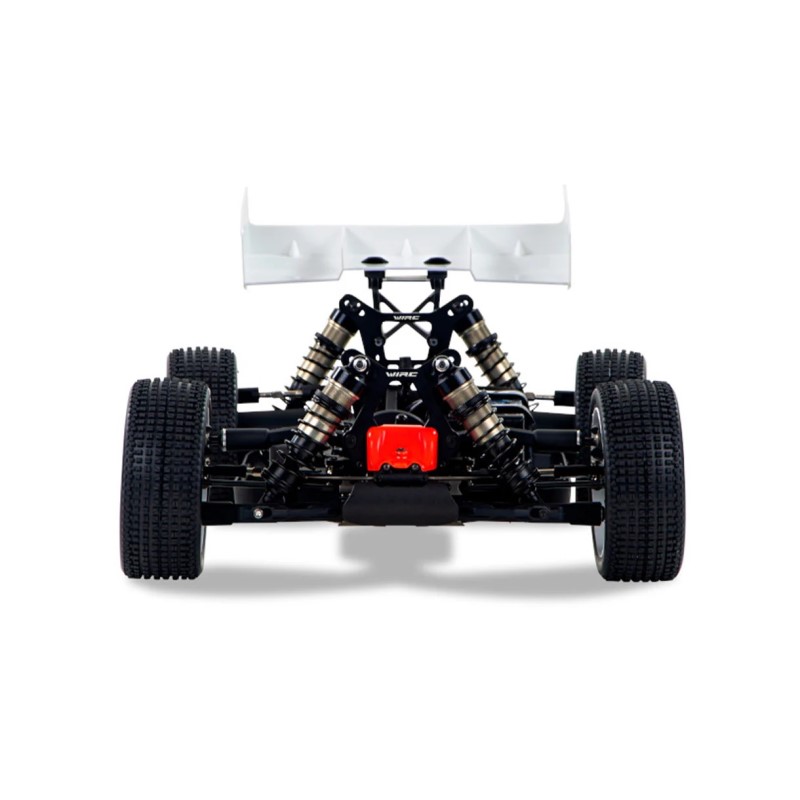

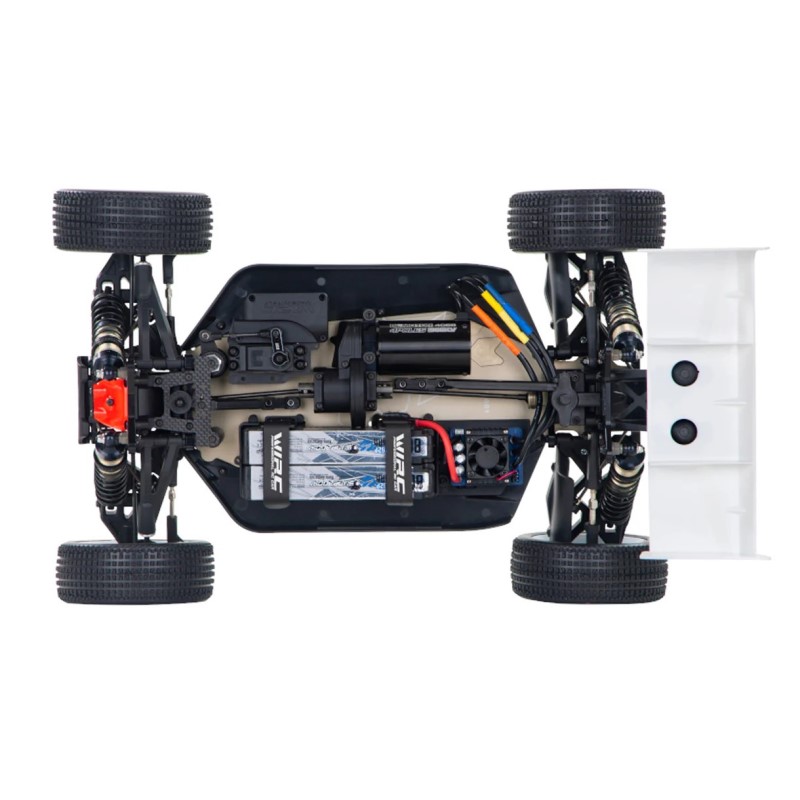

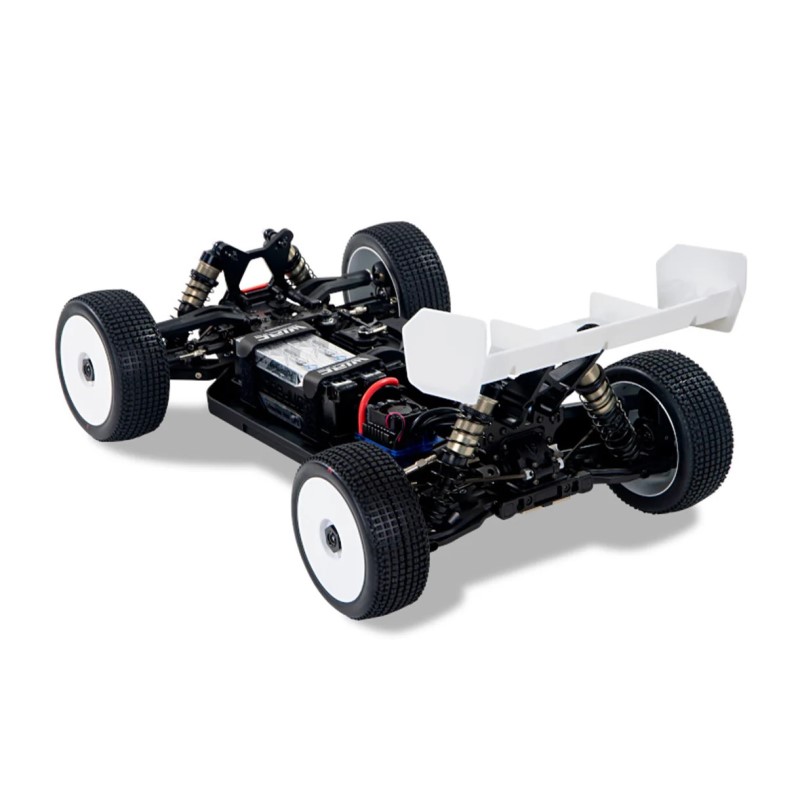

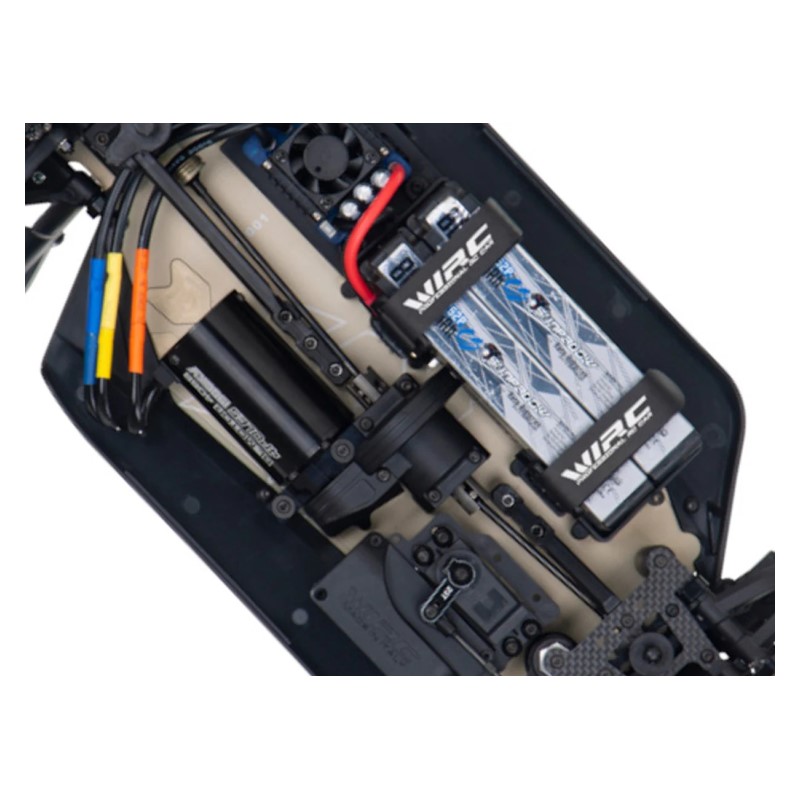

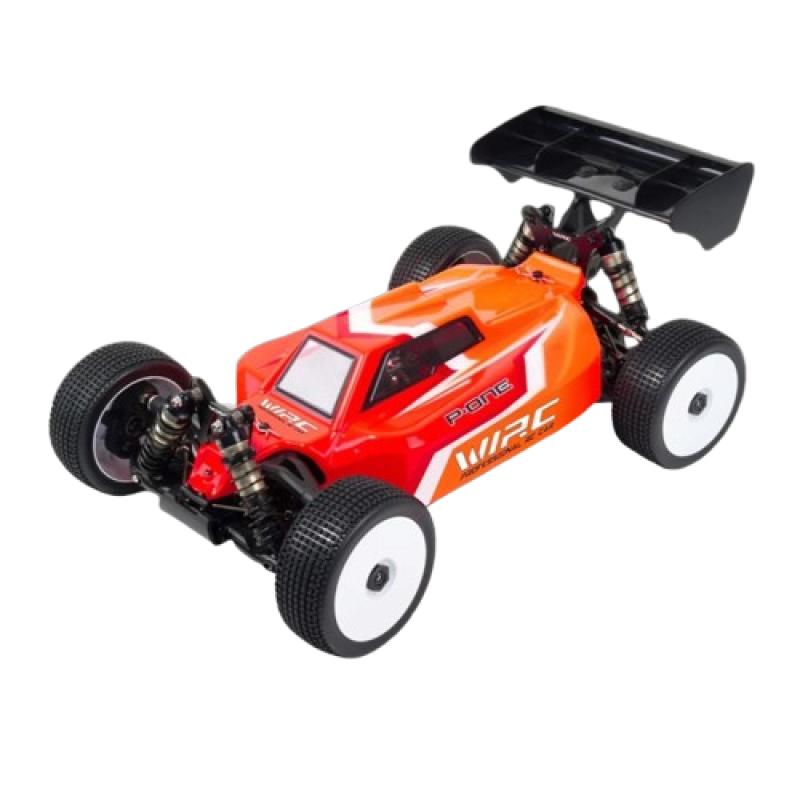

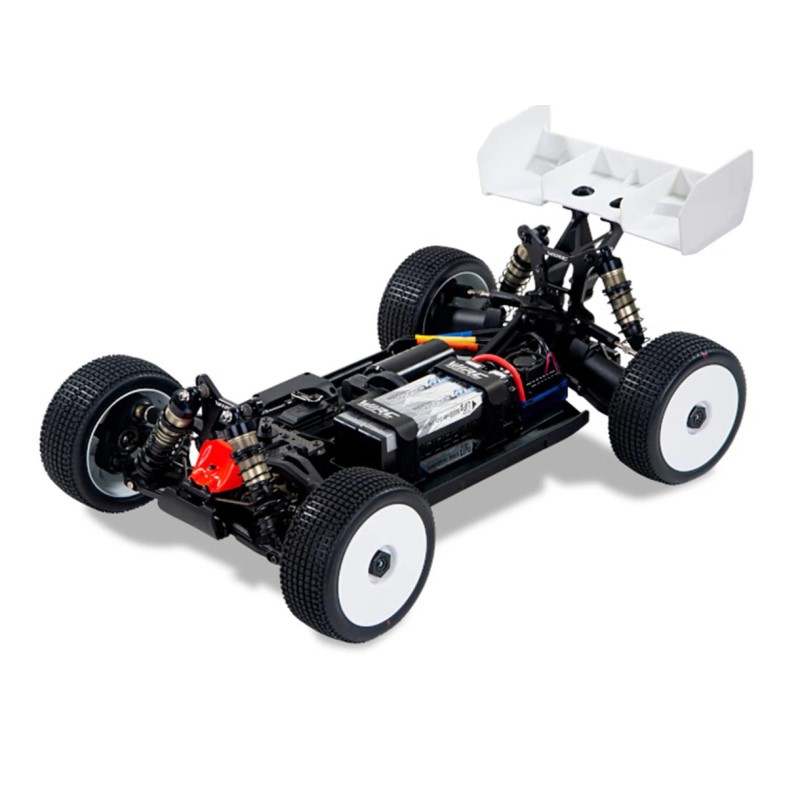

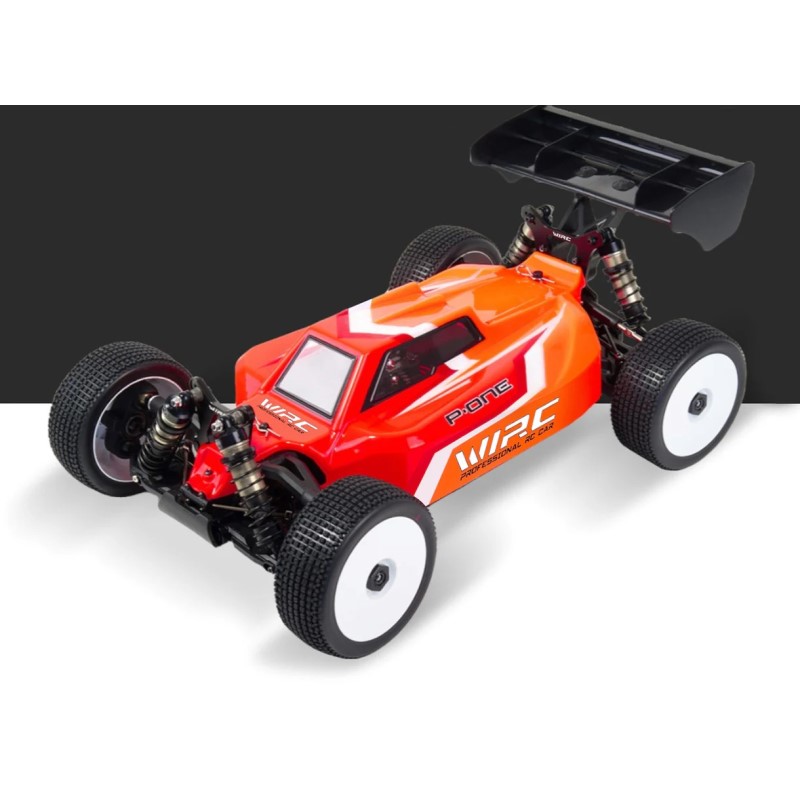

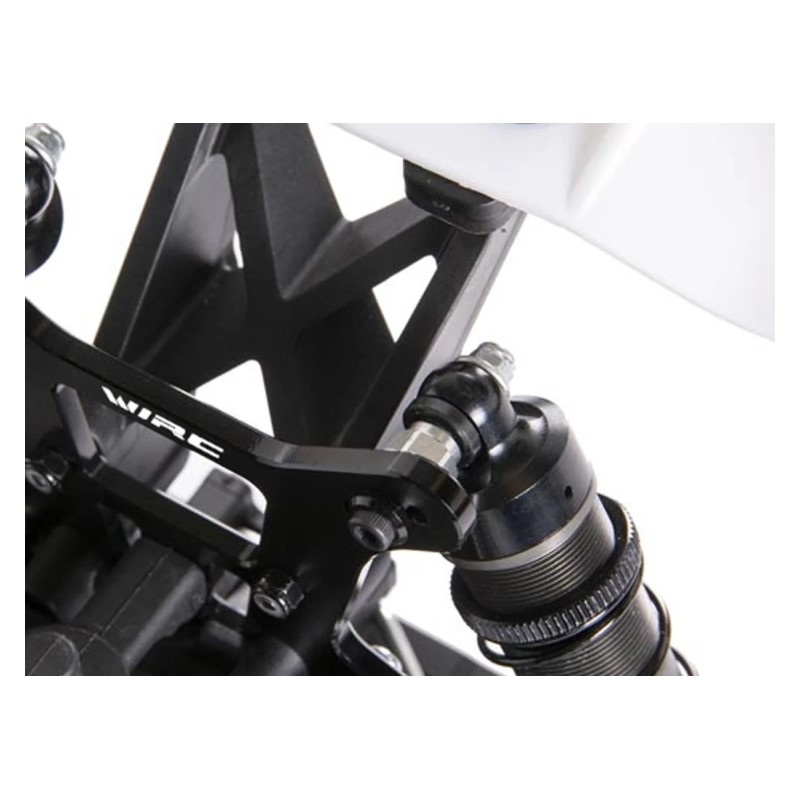

The SBXE-3 1/8 Off Road Electric Buggy 4WD features a new composite servo and receiver support, optimized chassis design, and improved weight distribution for the center differential, battery, and engine. This 1/8 scale off-road electric buggy includes an adjustable battery holder for various pack sizes and updated shock absorbers, ensuring superior performance on all terrains.
TECHNICAL SPECS
Width:310mm
Weight ready to run:Depending on the configuration.
Transmission:4wd wheel drive

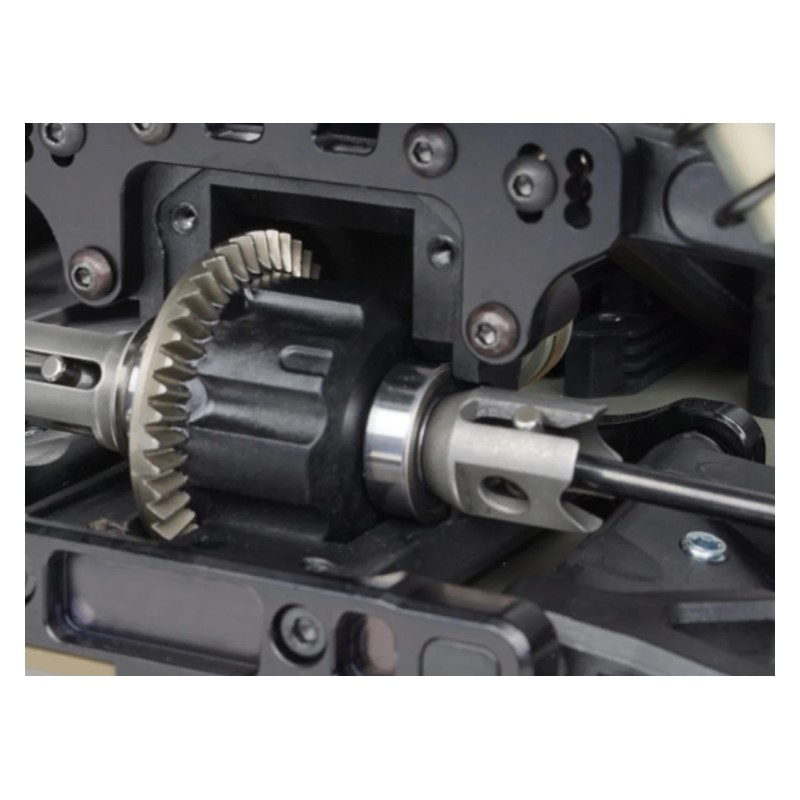

Central Differential:Differential Gear
Wheelbase:315-320mm
Wheels lock:Lightweight 17mm 7075 T6 Nut
Chassis:3.0 mm Swiss 7075 T6 aluminium
Radio Plate:Composite Material
Drivetrain type:Spring steel CVD Driveshifts
Front Differential:Differential Gear
Rear Differential:Differential Gear

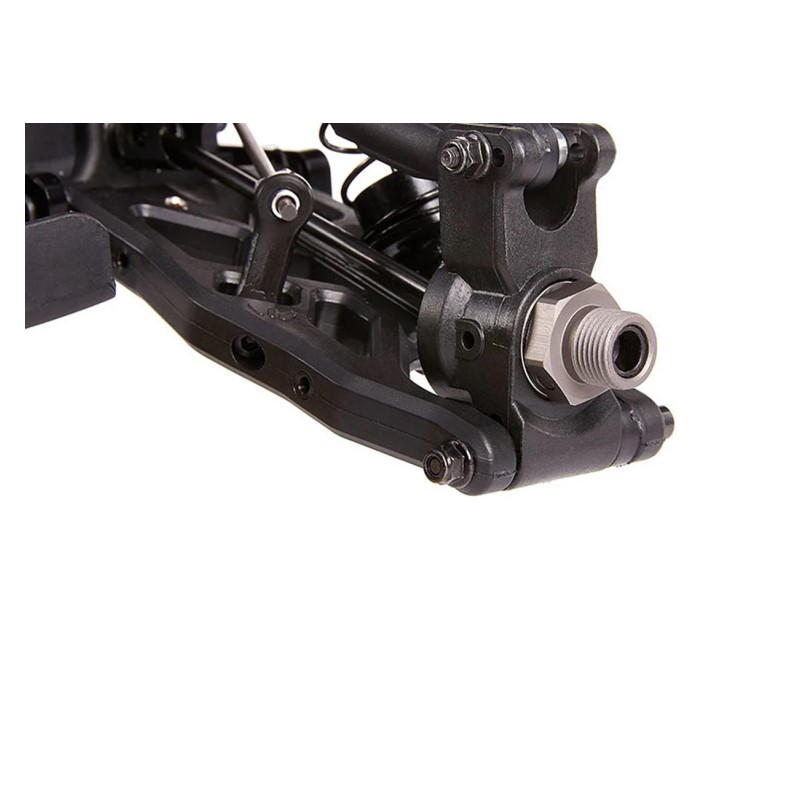

Suspension:Pivot ball suspension
Ride Height:Adjustable Front & Rear
Camber:Adjustable Front & Rear
Caster:Adjustable Front
Toe:Adjustable Front & Rear
Rollcenter:Adjustable Front & Rear
Ackermann:Adjustable Front
Anti-roll bars:Adjustable Front & Rear
MANUAL
SBXE-3: SBXE-3_Instruction_Manual_13_03_25_Compressed
SETUP SHEETS
SBXE-3 BLANK EDITABLE: SBXE-3_Setup_Sheet_Editable
SBXE-3 BASE SETUP: SBXE-3_Setup_Base
